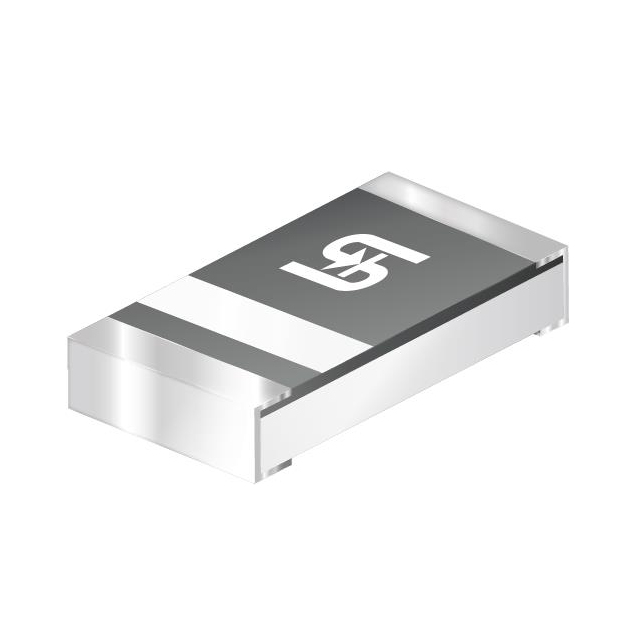

BZY55C12 RBG

Obsolete

Taiwan Semiconductor Corporation

DIODE ZENER 12V 500MW 0805

BZY55C12 RBG

Obsolete

Taiwan Semiconductor Corporation

DIODE ZENER 12V 500MW 0805

Description Specifications Series Pricing CAD Documents

Description

General part information

BZY55 Series

Zener Diode 12 V 500 mW ±5% Surface Mount 0805

Technical Specifications

Parameters and characteristics for this part

Specification	BZY55C12 RBG

Current - Reverse Leakage	100 nA
Impedance (Max) (Zzt)	20 Ohms
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	0805 (2012 Metric)
Package Name	0805
Power - Max	0.5 W
Tolerance	5 %
Voltage - Forward (Vf) (Max)	1.5 V, 1.5 V
Voltage - Zener (Nom) (Vz)	12 V

BZY55 Series

Part	Tolerance	Voltage - Forward (Vf) (Max)	Package / Case	Voltage - Zener (Nom) (Vz)	Power - Max	Operating Temperature (Min)	Operating Temperature (Max)	Impedance (Max) (Zzt)	Mounting Type	Package Name	Current - Reverse Leakage
Taiwan Semiconductor Corporation BZY55B12	2 %	1.5 V 1.5 V	0805 (2012 Metric)	12 V	0.5 W	-55 °C	150 °C	20 Ohms	Surface Mount	0805	100 nA
Taiwan Semiconductor Corporation BZY55B10	2 %	1.5 V 1.5 V	0805 (2012 Metric)	10 V	0.5 W	-55 °C	150 °C	15 Ohms	Surface Mount	0805	100 nA
Taiwan Semiconductor Corporation BZY55B9V1 RBG	2 %	1.5 V 1.5 V	0805 (2012 Metric)	9.1 V	0.5 W	-55 °C	150 °C	10 Ohms	Surface Mount	0805	100 nA
Taiwan Semiconductor Corporation BZY55C2V7 RBG	5 %	1.5 V 1.5 V	0805 (2012 Metric)	2.7 V	0.5 W	-55 °C	150 °C	85 Ohms	Surface Mount	0805	10 µA
Taiwan Semiconductor Corporation BZY55C24 RBG	5 %	1.5 V 1.5 V	0805 (2012 Metric)	24 V	0.5 W	-55 °C	150 °C	80 Ohms	Surface Mount	0805	100 nA
Taiwan Semiconductor Corporation BZY55C12 RBG	5 %	1.5 V 1.5 V	0805 (2012 Metric)	12 V	0.5 W	-55 °C	150 °C	20 Ohms	Surface Mount	0805	100 nA
Taiwan Semiconductor Corporation BZY55C6V2 RBG	5 %	1.5 V 1.5 V	0805 (2012 Metric)	6.2 V	0.5 W	-55 °C	150 °C	10 Ohms	Surface Mount	0805	100 nA
Taiwan Semiconductor Corporation BZY55B16 RBG	2 %	1.5 V 1.5 V	0805 (2012 Metric)	16 V	0.5 W	-55 °C	150 °C	40 Ohms	Surface Mount	0805	100 nA
Taiwan Semiconductor Corporation BZY55C11 RBG	5 %	1.5 V 1.5 V	0805 (2012 Metric)	11 V	0.5 W	-55 °C	150 °C	20 Ohms	Surface Mount	0805	100 nA
Taiwan Semiconductor Corporation BZY55C4V3 RBG	5 %	1.5 V 1.5 V	0805 (2012 Metric)	4.3 V	0.5 W	-55 °C	150 °C	80 Ohms	Surface Mount	0805	1 µA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

BZY55C12 RBG | Datasheet
