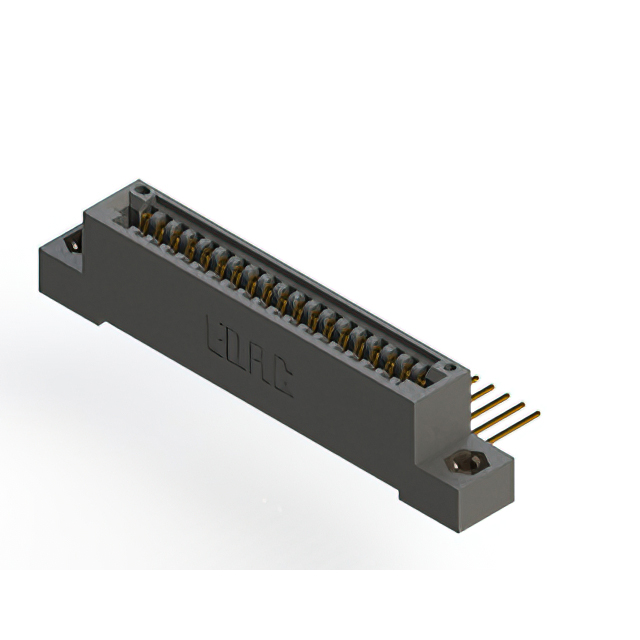

395-019-559-108

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

395-019-559-108

Active

EDAC Inc.

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	395-019-559-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	19
Number of Positions/Bay/Row [custom]	19
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

395-019 Series

...

Part	Number of Positions/Bay/Row [custom]	Material - Insulation	Contact Finish	Number of Rows	Contact Type	Number of Positions	Read Out	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Gender	Termination Rows	Card Type	Pitch [x]	Pitch [x]	Termination	Flange Feature	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 395-019-542-458	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	Card Guides	Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Wire Wrap	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 395-019-559-108	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole Right Angle	-40 °C	105 ░C		Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Solder	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 395-019-540-608	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C		Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Wire Wrap	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 395-019-520-407	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C		Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Solder	M3 Threaded Insert Top Mount Opening
EDAC Inc. 395-019-540-178	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	Card Guides	Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 395-019-541-402	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C		Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Wire Wrap		3.25 mm	0.128 in
EDAC Inc. 395-019-544-103	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C		Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Wire Wrap	Floating Bobbin Flush Mount			0.116 in	2.95 mm
EDAC Inc. 395-019-542-101	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C		Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Wire Wrap
EDAC Inc. 395-019-540-603	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C		Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Wire Wrap	Floating Bobbin Top Mount Opening			0.116 in	2.95 mm
EDAC Inc. 395-019-541-188	19	Polyester Thermoplastic	Gold	1	Cantilever	19	Single	10 Áin	0.25 Ám	Black	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	-40 °C	105 ░C	Card Guides	Female	1	Non Specified - Single Edge	2.54 mm	0.1 in	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.97
Newark	Each	1	$ 14.59
		100	$ 10.53
		250	$ 9.52
		500	$ 8.71
		1000	$ 7.03

Description

General part information

395-019 Series

19 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
