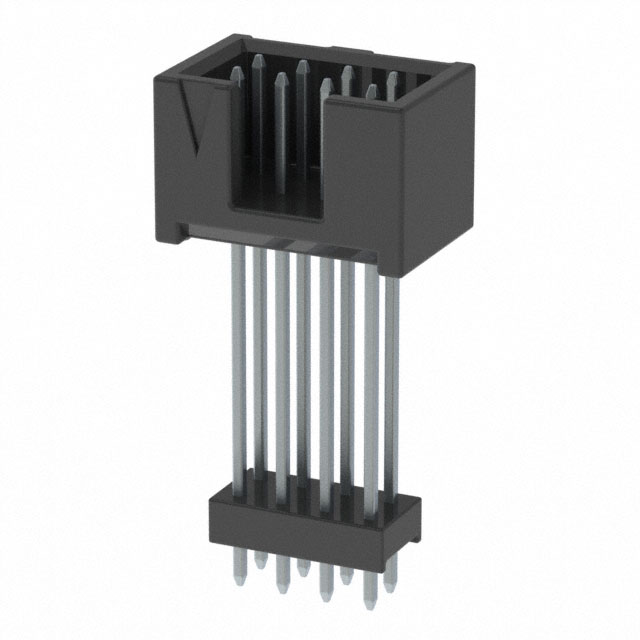

ZSS-104-06-T-D-1000

Active

Samtec Inc.

CONN HDR .100" 8POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZSS-104-06-T-D-1000

Active

Samtec Inc.

CONN HDR .100" 8POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-104-06-T-D-1000

null

ZSS-104 Series

Part	Current Rating (Amps)	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Contact Finish - Post	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Features	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Type	Fastening Type	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions Loaded	Contact Material	Style	Shrouding	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Rows	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. ZSS-104-04-L-S-765-LL	3 A	Through Hole	0.165 in	4.19 mm	Elevated Header	Tin	Kinked Pin Solder	4	-55 °C	125 °C	19.43 mm	0.765 in	Keying Slot	UL94 V-0	6.35 mm	0.25 in	Male Pin	Push-Pull	Square	10 çin	0.25 çm	0.1 in	2.54 mm	Polyester Glass Filled	All	Phosphor Bronze	Board to Board Cable	Shrouded - 4 Wall	Gold	0.93 in	23.62 mm	Black	1
Samtec Inc. ZSS-104-05-T-D-840
Samtec Inc. ZSS-104-04-L-S-770-LL	3 A	Through Hole			Elevated Header	Tin	Kinked Pin Solder	4	-55 °C	125 °C	19.56 mm	0.77 in	Keying Slot	UL94 V-0	6.35 mm	0.25 in	Male Pin	Push-Pull	Square	10 çin	0.25 çm	0.1 in	2.54 mm	Polyester Glass Filled	All	Phosphor Bronze	Board to Board Cable	Shrouded - 4 Wall	Gold	0.93 in	23.62 mm	Black	1	4.06 mm	0.16 in
Samtec Inc. ZSS-104-03-L-D-665
Samtec Inc. ZSS-104-06-T-D-1000
Samtec Inc. ZSS-104-09-L-D-1260	3 A	Through Hole			Elevated Header	Tin	Solder	8	-55 °C	125 °C	32 mm	1.26 in	Keying Slot	UL94 V-0	6.35 mm	0.25 in	Male Pin	Push-Pull	Square	10 çin	0.25 çm	0.1 in	2.54 mm	Polyester Glass Filled	All	Phosphor Bronze	Board to Board Cable	Shrouded - 4 Wall	Gold			Black	2	4.32 mm	0.17 in	2.54 mm	0.1 in
Samtec Inc. ZSS-104-01-L-D-540	3 A	Through Hole			Elevated Header	Tin	Solder	8	-55 °C	125 °C	13.72 mm	0.54 in	Keying Slot	UL94 V-0	6.35 mm	0.25 in	Male Pin	Push-Pull	Square	10 çin	0.25 çm	0.1 in	2.54 mm	Polyester Glass Filled	All	Phosphor Bronze	Board to Board Cable	Shrouded - 4 Wall	Gold			Black	2	2.29 mm	0.09 "	2.54 mm	0.1 in	0.63 "	16 mm
Samtec Inc. ZSS-104-07-G-D-1115
Samtec Inc. ZSS-104-02-G-D-585	3 A	Through Hole			Elevated Header	Gold	Solder	8	-55 °C	125 °C	14.86 mm	0.585 in	Keying Slot	UL94 V-0	6.35 mm	0.25 in	Male Pin	Push-Pull	Square	10 çin	0.25 çm	0.1 in	2.54 mm	Polyester Glass Filled	All	Phosphor Bronze	Board to Board Cable	Shrouded - 4 Wall	Gold	0.73 in	18.54 mm	Black	2	3.68 mm	0.145 in	2.54 mm	0.1 in			3 µin	0.076 µm
Samtec Inc. ZSS-104-09-S-D-1315

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.51

Description

General part information

ZSS-104 Series

Connector Header position

Documents

Technical documentation and resources
