111-00468

Active

HELLERMANNTYTON

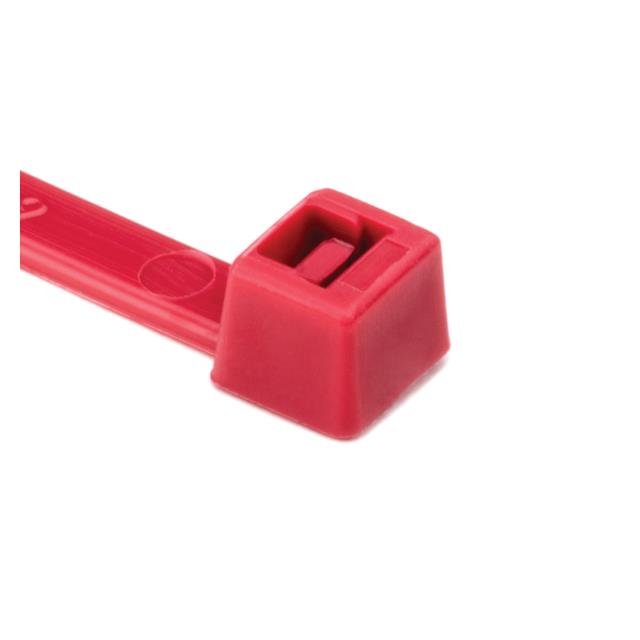

CBL TIE LOCKING RED 50LBS 7.95"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMaterials Guide for Bundling & Securing Datasheet

111-00468

Active

HELLERMANNTYTON

CBL TIE LOCKING RED 50LBS 7.95"

Deep-Dive with AI

DocumentsMaterials Guide for Bundling & Securing Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.27

Description

General part information

111-00 Series

Standard, Locking Red 1.97" (50.00mm) 0.181" (4.60mm) 50 lbs (22.68 kg)

Documents

Technical documentation and resources

Materials Guide for Bundling & Securing

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	111-00468	111-00 Series

Bundle Diameter	50 mm	35 - 50 mm
Bundle Diameter	1.97 in	1.38 - 1.97 in
Bundle Diameter	-	22 - 150 mm
Bundle Diameter	-	0.86 - 5.91 "
Color	Red	Blue, Brown, Red, Black
Features	UV Resistant	Halogen Free, UV Resistant, Heat Stabilized, Impact Resistant
Length - Actual	-	0.328 - 1.28 ft
Length - Actual	-	100 - 390 mm
Length - Actual	-	3.93 - 7.87 "
Length - Actual [x]	202 mm	150 - 565.3 mm
Length - Actual [x]	0.663 ft	0.492 - 1.855 ft
Length - Actual [x]	7.95 "	5.91 - 7.95 "
Length - Approximate	8 in	4 - 22.25 in
Length - Approximate	-	6 in
Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Metal Detectable, Nylon 6/6, Polyamide (PA46), Nylon 4/6, Ethylenterafluorineethylene (ETFE), Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tensile Strength	22.68 kg	8.16 - 113.4 kg
Tensile Strength	50 lbs	18 - 250 lbs
Width	-	8.89 - 12.5 mm
Width	-	0.098 - 0.492 in
Width	-	2.5 - 4.7 mm
Width [y]	0.181 in	0.138 - 0.181 in
Width [y]	4.6 mm	3.5 - 4.6 mm
Wire/Cable Tie Type	Standard, Locking	Standard, Locking

111-00 Series

CBL TIE LOCKING BLUE 50LBS 1.28'

Part	Features	Length - Approximate	Length - Actual	Length - Actual	Wire/Cable Tie Type	Material	Mounting Type	Tensile Strength	Tensile Strength	Bundle Diameter [diameter]	Bundle Diameter [diameter]	Width [y]	Width [y]	Color	Width	Width [x]	Length - Actual [x]	Length - Actual [x]	Length - Approximate [x]	Bundle Diameter	Bundle Diameter	Length - Actual [x]	Width [x]	Length - Actual
HELLERMANNTYTON 111-00831	Halogen Free	15.25 in	1.28 ft	390 mm	Locking, Standard	Metal Detectable, Nylon 6/6, Polyamide (PA66)	Free Hanging (In-Line)	22.68 kg	50 lbs	110 mm	4.33 "	0.181 in	4.6 mm	Blue
HELLERMANNTYTON 111-00965		20.75 in			Locking, Standard	Polyamide (PA46), Nylon 4/6	Free Hanging (In-Line)	79.4 kg	175 lbs	150 mm	5.91 "			Brown	8.89 mm	0.35 in	530 mm	1.739 ft
HELLERMANNTYTON 111-00829	Halogen Free				Locking, Standard	Metal Detectable, Nylon 6/6, Polyamide (PA66)	Free Hanging (In-Line)	13.61 kg	30 lbs			0.138 "	3.5 mm	Blue			150 mm	0.492 ft	6 in	1.38 in	35 mm	5.91 "
HELLERMANNTYTON 111-00718		15 in			Locking, Standard	Ethylenterafluorineethylene (ETFE)	Free Hanging (In-Line)	22.68 kg	50 lbs	104.9 mm	4.13 in			Blue		0.185 in							4.7 mm
HELLERMANNTYTON 111-00468	UV Resistant	8 in			Locking, Standard	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	22.68 kg	50 lbs			0.181 in	4.6 mm	Red			202 mm	0.663 ft		1.97 in	50 mm	7.95 "
HELLERMANNTYTON 111-00732		7.75 in	0.656 ft	200 mm	Locking, Standard	Ethylenterafluorineethylene (ETFE)	Free Hanging (In-Line)	22.68 kg	50 lbs			0.181 in	4.6 mm	Blue						1.97 in	50 mm			7.87 "
HELLERMANNTYTON 111-00830	Halogen Free	7.75 in	0.656 ft	200 mm	Locking, Standard	Metal Detectable, Nylon 6/6, Polyamide (PA66)	Free Hanging (In-Line)	22.68 kg	50 lbs			0.181 in	4.6 mm	Blue						1.97 in	50 mm			7.87 "
HELLERMANNTYTON 111-00698					Locking, Standard	Ethylenterafluorineethylene (ETFE)	Free Hanging (In-Line)	13.61 kg	30 lbs			0.138 "	3.5 mm	Blue			150 mm	0.492 ft	6 in	1.42 in	36 mm	5.91 "
HELLERMANNTYTON 111-00659		4 in	0.328 ft	100 mm	Locking, Standard	Ethylenterafluorineethylene (ETFE)	Free Hanging (In-Line)	8.16 kg	18 lbs	22 mm	0.86 in			Blue		0.098 in							2.5 mm	3.93 in
HELLERMANNTYTON 111-00925	UV Resistant	22.25 in			Locking, Standard	Polyamide (PA66), Nylon 6/6	Free Hanging (In-Line)	113.4 kg	250 lbs	150 mm	5.91 "			Black	12.5 mm	0.492 in	565.3 mm	1.855 ft
