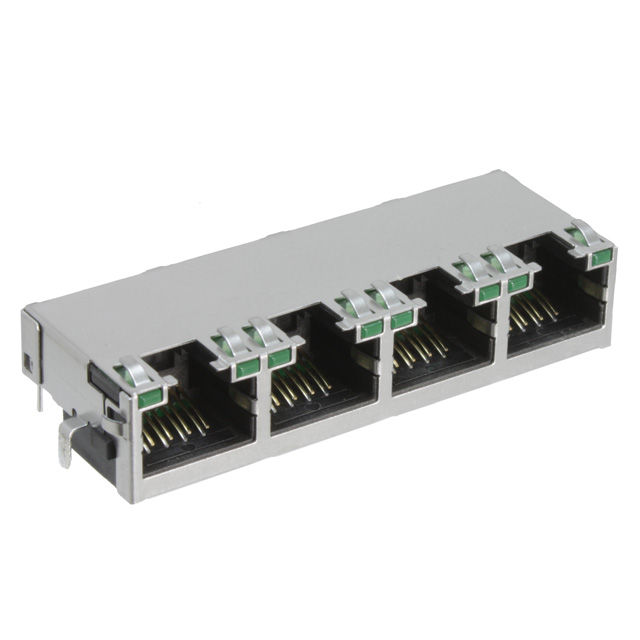

RJE72-488-1451

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRJE72 Series Brochure Datasheet

RJE72-488-1451

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Deep-Dive with AI

DocumentsRJE72 Series Brochure Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJE72-488-1451

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Green - Green
Mounting Type	Through Hole, Board Edge, Panel Mount
Number of Ports	4
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Ratings	Cat5e
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

RJE72488 Series

Part	Termination	LED Color	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Ports	Connector Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Number of Rows	Number of Positions/Contacts	Shielding	Housing Material	Tab Direction	Orientation
Amphenol ICC (Commercial Products) RJE724881413	Solder	Yellow - Green	Gold	50 µin	1.27 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °
Amphenol ICC (Commercial Products) RJE72-488-14A1	Solder	Green Yellow	Gold	50 µin	1.27 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °
Amphenol ICC (Commercial Products) RJE724881452	Solder	Green - Green	Gold	50 µin	1.27 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °
Amphenol ICC (Commercial Products) RJE72-488-1451	Solder	Green - Green	Gold	50 µin	1.27 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °
Amphenol ICC (Commercial Products) RJE724881463	Solder	Yellow - Yellow	Gold	50 µin	1.27 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °
Amphenol ICC (Commercial Products) RJE7248814L1	Solder	Green Yellow - Red	Gold	50 µin	1.27 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °
Amphenol ICC (Commercial Products) RJE724881412	Solder	Yellow - Green	Gold	50 µin	1.27 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °
Amphenol ICC (Commercial Products) RJE724881443	Solder	Green Yellow	Gold	50 µin	1.27 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °
Amphenol ICC (Commercial Products) RJE724881442	Solder	Green Yellow	Gold	50 µin	1.27 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °
Amphenol ICC (Commercial Products) RJE724881241	Solder	Green Yellow	Gold	15 µin	0.38 µm	Board Edge Panel Mount Through Hole	4	Jack	Phosphor Bronze	85 °C	-40 °C	Cat5e	1	8p8c (RJ45 Ethernet)	Shielded EMI Finger	Thermoplastic	Up	90 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RJE72488 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e

Documents

Technical documentation and resources

RJE72 Series Brochure

Datasheet
