420-1/2"X36YD

Active

3M (TC)

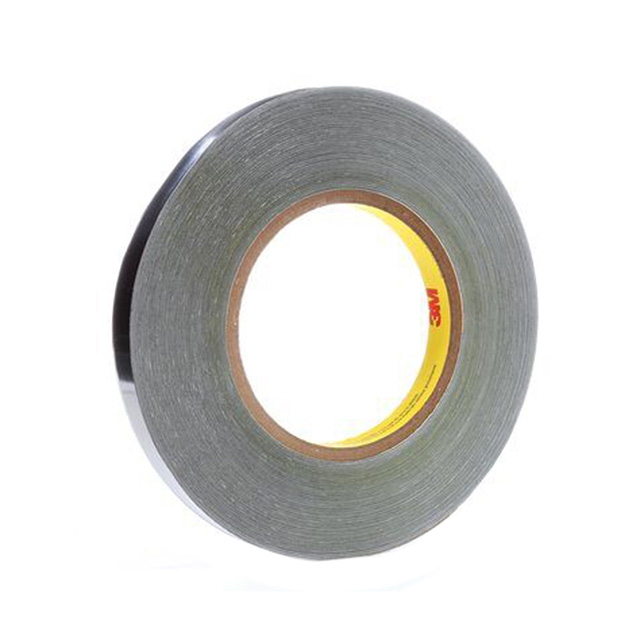

TAPE LEAD FOIL SILVER 1/2"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE LEAD FOIL SILVER 1/2"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	420-1/2"X36YD

Adhesive	Rubber
Backing, Carrier	Lead Foil
Color	Silver
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Lead Foil
Temperature Range [Max]	225 °F, 106 °C
Temperature Range [Min]	-60 °F, -51 °C
Thickness	0.173 mm
Thickness	6.8 mils
Thickness	0.0068 "
Thickness - Adhesive	2.1 mils
Thickness - Adhesive	0.0021 "
Thickness - Adhesive	0.053 mm
Thickness - Backing, Carrier [custom]	0.0047 "
Thickness - Backing, Carrier [custom]	0.119 mm
Thickness - Backing, Carrier [custom]	4.7 mils
Usage	Electrically Conductive
Width	0.5 in
Width	12.7 mm
Width	0.5 in

Part	Tape Type	Shelf Life	Width	Width	Width	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Temperature Range [Max]	Temperature Range [Min]	Thickness	Thickness	Thickness	Usage	Backing, Carrier	Length	Length	Length	Color	Shelf Life Start	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Adhesive	Type	For Use With/Related Products	Features	Features
3M (TC) 420-1/2"X36YD	Lead Foil	18 Months	0.5 in	12.7 mm	0.5 in	0.0047 "	0.119 mm	4.7 mils	106 °C 225 °F	-60 °F -51 °C	0.173 mm	6.8 mils	0.0068 "	Electrically Conductive	Lead Foil	36 yd	32.9 m	108 ft	Silver	Date of Manufacture	16 °C 60 °F	27 °C 80 °F	2.1 mils	0.0021 "	0.053 mm	Rubber
3M (TC) 420-2097-50																											Earplugs
3M (TC) 420-2096-25A																											Earplugs
3M (TC) 420NS-BLACK-43G-PARTB		24 Months																			16 °C 60 °F	27 °C 80 °F					Epoxy 2 Part	Multi-Purpose	Black	43 Gallon
3M (TC) 420-BLACK-5G-PARTB		24 Months																			16 °C 60 °F	27 °C 80 °F					Epoxy 2 Part	Multi-Purpose	Black	5 Gallon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	18	$ 86.07

General part information

Lead Foil Tape Rubber Adhesive Silver 0.50" (12.70mm) 1/2" X 108' (32.9m) 36 yds
