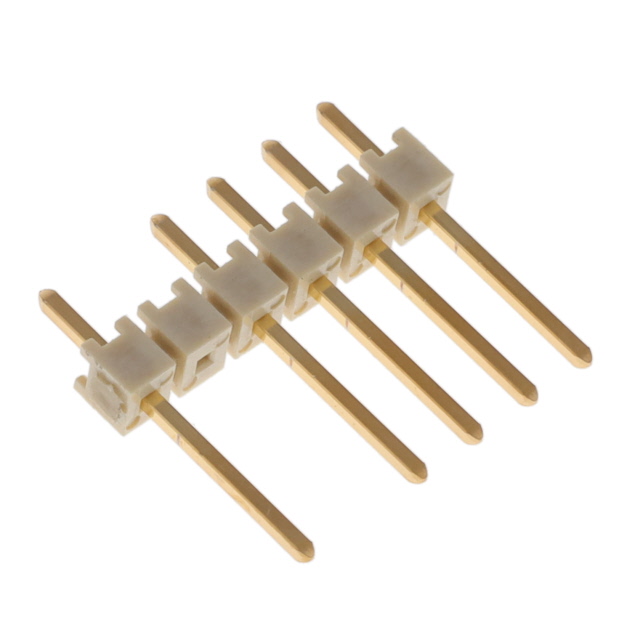

HMTSW-106-08-G-S-315-005

Active

Samtec Inc.

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet .100" High-Temp Variable Post Height Terminal Strip

HMTSW-106-08-G-S-315-005

Active

Samtec Inc.

CONN HEADER VERT 6POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet .100" High-Temp Variable Post Height Terminal Strip

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HMTSW-106-08-G-S-315-005

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	8 mm
Contact Length - Mating	0.315 in
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	13.46 mm
Overall Contact Length	0.53 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

HMTSW-106 Series

...

Part	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Material Flammability Rating	Number of Positions	Contact Finish - Post	Contact Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Style	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Shrouding	Mounting Type	Insulation Height	Insulation Height	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Material	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded [custom]
Samtec Inc. HMTSW-106-22-LM-S-290-NA	3 A	Gold	Natural	UL94 V-0	6	Tin	Male Pin	0.29 in	7.37 mm	Push-Pull	Square	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm	All	Unshrouded	Through Hole Right Angle	3.1 mm	0.122 in	Header	10 çin	0.25 çm	Solder	Phosphor Bronze	1
Samtec Inc. HMTSW-106-23-TM-S-250	3 A		Natural	UL94 V-0	6	Tin	Male Pin	0.25 in	6.35 mm	Push-Pull	Square	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm	All	Unshrouded	Through Hole	2.54 mm	0.1 in	Header			Solder	Phosphor Bronze	1	11.3 mm	0.445 "	2.41 mm	0.095 in
Samtec Inc. HMTSW-106-08-SM-S-225-NA	3 A	Gold	Natural	UL94 V-0	6	Tin	Male Pin	0.225 in	5.72 mm	Push-Pull	Square	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm	All	Unshrouded	Through Hole Right Angle	3.1 mm	0.122 in	Header	30 Áin	0.76 Ám	Solder	Phosphor Bronze	1
Samtec Inc. HMTSW-106-09-L-D-540	3 A	Gold	Natural	UL94 V-0	12	Tin	Male Pin			Push-Pull	Square	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm	All	Unshrouded	Through Hole	2.54 mm	0.1 in	Header	10 çin	0.25 çm	Solder	Phosphor Bronze	2	18.54 mm	0.73 in			2.54 mm	0.1 in	0.09 "	2.29 mm
Samtec Inc. HMTSW-106-07-T-S-240	3 A		Natural	UL94 V-0	6	Tin	Male Pin		6.1 mm	Push-Pull	Square	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm	All	Unshrouded	Through Hole	2.54 mm	0.1 in	Header			Solder	Phosphor Bronze	1	10.92 mm	0.43 in					0.09 "	2.29 mm	0.24 in
Samtec Inc. HMTSW-106-08-T-S-195	3 A		Natural	UL94 V-0	6	Tin	Male Pin	0.195 "	4.95 mm	Push-Pull	Square	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm	All	Unshrouded	Through Hole	2.54 mm	0.1 in	Header			Solder	Phosphor Bronze	1	13.46 mm	0.53 in		0.235 in				5.97 mm
Samtec Inc. HMTSW-106-08-S-S-313	3 A	Gold	Natural	UL94 V-0	6	Tin	Male Pin	0.313 in	7.95 mm	Push-Pull	Square	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm	All	Unshrouded	Through Hole	2.54 mm	0.1 in	Header	30 Áin	0.76 Ám	Solder	Phosphor Bronze	1	13.46 mm	0.53 in					0.117 in	2.97 mm
Samtec Inc. HMTSW-106-08-T-S-120-RA	3 A		Natural	UL94 V-0	6	Tin	Male Pin	0.12 in	3.05 mm	Push-Pull	Square	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm	All	Unshrouded	Through Hole Right Angle	3.1 mm	0.122 in	Header			Solder	Phosphor Bronze	1
Samtec Inc. HMTSW-106-10-T-S-520	3 A		Natural	UL94 V-0	6	Tin	Male Pin			Push-Pull	Square	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm	All	Unshrouded	Through Hole	2.54 mm	0.1 in	Header			Solder	Phosphor Bronze	1	21.08 mm	0.83 in	5.33 mm	0.21 in					0.52 in	13.21 mm
Samtec Inc. HMTSW-106-08-G-S-315-005	3 A	Gold	Natural	UL94 V-0	6	Gold	Male Pin	0.315 in	8 mm	Push-Pull	Square	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Board to Board Cable	0.1 in	2.54 mm		Unshrouded	Through Hole	2.54 mm	0.1 in	Header	10 çin	0.25 çm	Solder	Phosphor Bronze	1	13.46 mm	0.53 in					0.115 in	2.92 mm			3 µin	0.076 µm	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.61
		10	$ 1.40
		100	$ 1.25
		500	$ 1.04
		1000	$ 0.89
		5000	$ 0.79
		10000	$ 0.77
