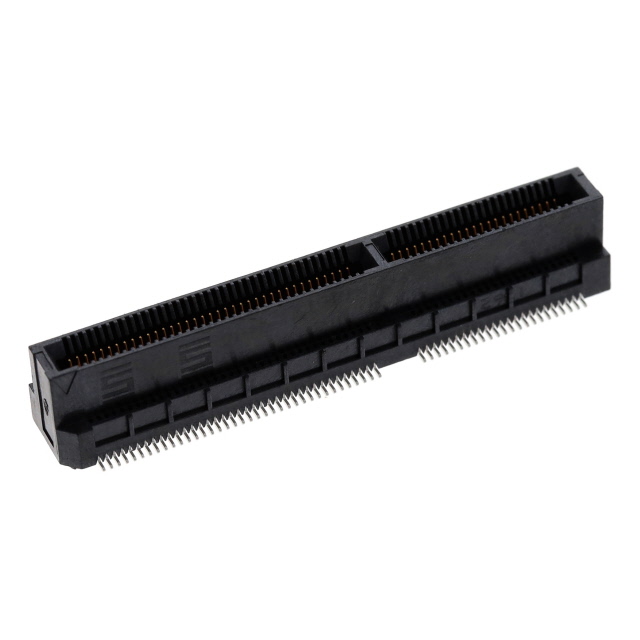

MEC6-160-02-L-DV-A

Active

Samtec Inc.

CONN EDGE DUAL FML 120POS 0.025

Search across all available documentation for this part.

Active

Samtec Inc.

CONN EDGE DUAL FML 120POS 0.025

Technical Specifications

Parameters and characteristics for this part

Specification	MEC6-160-02-L-DV-A

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Phosphor Bronze
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	120
Number of Positions/Bay/Row [custom]	50
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Read Out	Dual
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Card Thickness	Card Thickness	Gender	Color	Mounting Type	Contact Material	Card Type	Number of Positions/Bay/Row [custom]	Read Out	Number of Rows	Termination	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Material - Insulation
Samtec Inc. MEC6-160-02-L-DV-A	10 Áin	0.25 Ám	0.64 mm	0.025 in	0.062 in	1.57 mm	Female	Black	Surface Mount	Phosphor Bronze	Non Specified - Dual Edge	50	Dual	2	Solder	Gold	-55 °C	125 °C	120	Board Guide	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC6-160-02-S-DV-A	30 Áin	0.76 Ám	0.64 mm	0.025 in	0.062 in	1.57 mm	Female	Black	Surface Mount	Phosphor Bronze	Non Specified - Dual Edge	60	Dual	2	Solder	Gold	-55 °C	125 °C	120	Board Guide	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC6-160-02-S-DV-K-TR	30 Áin	0.76 Ám	0.64 mm	0.025 in	0.062 in	1.57 mm	Female	Black	Surface Mount	Phosphor Bronze	Non Specified - Dual Edge	60	Dual	2	Solder	Gold	-55 °C	125 °C	120	Pick and Place	Liquid Crystal Polymer (LCP)
Samtec Inc. MEC6-160-02-L-DV	10 Áin	0.25 Ám	0.64 mm	0.025 in	0.062 in	1.57 mm	Female	Black	Surface Mount	Phosphor Bronze	Non Specified - Dual Edge	60	Dual	2	Solder	Gold	-55 °C	125 °C	120		Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Female Connector Non Specified - Dual Edge Gold 0.025" (0.64mm) Black
