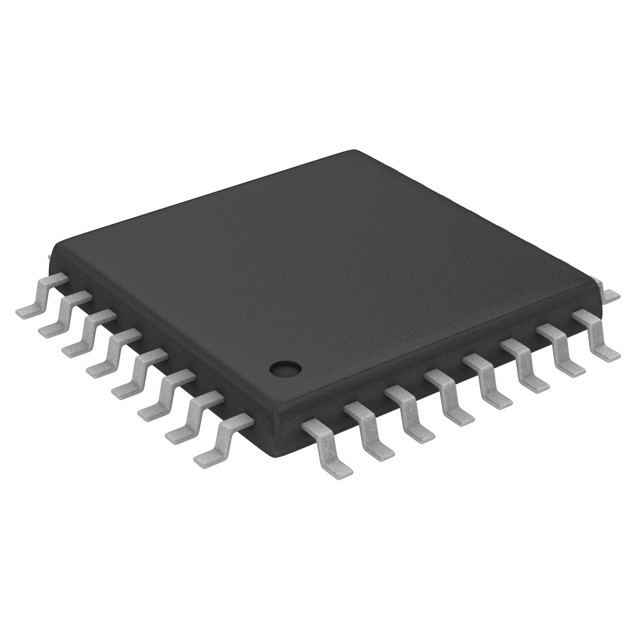

73M2901CE-IGVR/F
ActiveAnalog Devices Inc./Maxim Integrated
IC MODEM 3.3V V.22BIS 32-TQFP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
73M2901CE-IGVR/F
ActiveAnalog Devices Inc./Maxim Integrated
IC MODEM 3.3V V.22BIS 32-TQFP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 73M2901CE-IGVR/F | 73M2901 Series |
|---|---|---|
| - | - | |
| Baud Rates [Max] | 9.6 k | 9.6 k |
| Baud Rates [Min] | 300 Baud | 300 Baud |
| Data Format | V.22, V.23, V.21, Bell 103, Bell 212A | V.22, V.23, V.21, Bell 103, Bell 212A, FSK |
| Function | - | Modem |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 32-TQFP | 32-TQFP, 32-LCC (J-Lead), 32-VFQFN Exposed Pad |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 32-TQFP (7x7) | 32-TQFP (7x7), 32-PLCC (14x11.46), 32-QFN (5x5) |
| Type | - | Telecom |
| Utilized IC / Part | - | 73M2901CE |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.87 | |
| 10 | $ 8.34 | |||
| 25 | $ 7.43 | |||
| 100 | $ 6.42 | |||
| 250 | $ 5.92 | |||
| 500 | $ 5.62 | |||
| 1000 | $ 5.38 | |||
| Digi-Reel® | 1 | $ 11.87 | ||
| 10 | $ 8.34 | |||
| 25 | $ 7.43 | |||
| 100 | $ 6.42 | |||
| 250 | $ 5.92 | |||
| 500 | $ 5.62 | |||
| 1000 | $ 5.38 | |||
| Tape & Reel (TR) | 2000 | $ 5.38 | ||
73M2901 Series
IC MODEM 3.3V V.22BIS 32-TQFP
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Data Format | Baud Rates [Min] | Baud Rates [Max] | Package / Case | Supplier Device Package | Mounting Type | Utilized IC / Part | Function | Supplied Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated 73M2901CE-IGVR/F | 2.7 V | 3.6 V | Bell 103, Bell 212A, V.21, V.22, V.23 | 300 Baud | 9.6 k | 32-TQFP | 32-TQFP (7x7) | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated 73M2901CL-IH/F | 2.7 V | 3.6 V | Bell 103, Bell 212A, FSK, V.21, V.22, V.23 | 300 Baud | 9.6 k | 32-LCC (J-Lead) | 32-PLCC (14x11.46) | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated 73M2901CE-EVM-600 | 73M2901CE | Modem | Board(s) | Telecom | ||||||||
Analog Devices Inc./Maxim Integrated 73M2901CL-IGV/F | ||||||||||||
Analog Devices Inc./Maxim Integrated 73M2901CE-IM/F | 2.7 V | 3.6 V | Bell 103, Bell 212A, V.21, V.22, V.23 | 300 Baud | 9.6 k | 32-VFQFN Exposed Pad | 32-QFN (5x5) | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated 73M2901CE-IGV/F | 2.7 V | 3.6 V | Bell 103, Bell 212A, V.21, V.22, V.23 | 300 Baud | 9.6 k | 32-TQFP | Surface Mount | |||||
Analog Devices Inc./Maxim Integrated 73M2901CL-IHR/F | 2.7 V | 3.6 V | Bell 103, Bell 212A, FSK, V.21, V.22, V.23 | 300 Baud | 9.6 k | 32-LCC (J-Lead) | 32-PLCC (14x11.46) | Surface Mount | ||||
Analog Devices Inc./Maxim Integrated 73M2901CE-IMR/F | 2.7 V | 3.6 V | Bell 103, Bell 212A, V.21, V.22, V.23 | 300 Baud | 9.6 k | 32-VFQFN Exposed Pad | 32-QFN (5x5) | Surface Mount |
Description
General part information
73M2901 Series
300 ~ 9.6k Modem V.21, V.22, V.23, Bell 103, Bell 212A 32-TQFP (7x7)
