STMM-115-02-T-D-SM

Active

Samtec Inc.

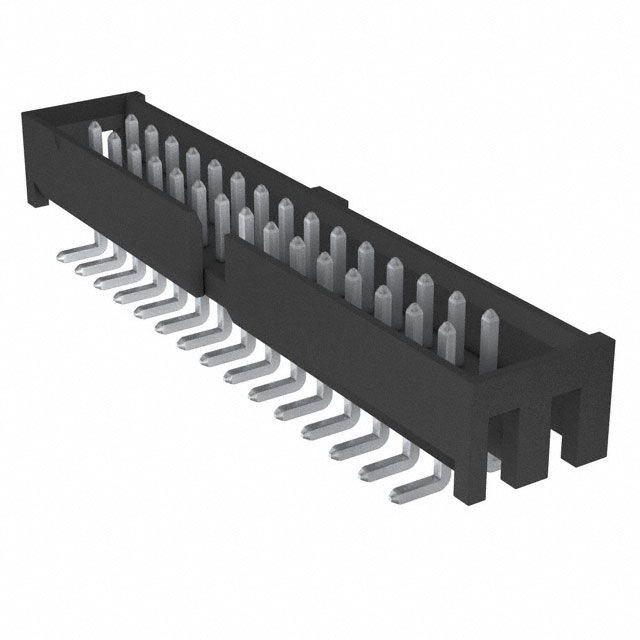

CONN HEADER SMD 30POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSTMM Datasheet 2.00 mm Shrouded Terminal Strip +3

STMM-115-02-T-D-SM

Active

Samtec Inc.

CONN HEADER SMD 30POS 2MM

Deep-Dive with AI

DocumentsSTMM Datasheet 2.00 mm Shrouded Terminal Strip +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STMM-115-02-T-D-SM

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	4.83 mm
Insulation Height	0.19 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

STMM-115 Series

Part	Contact Finish - Post	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Color	Current Rating (Amps)	Connector Type	Shrouding	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Number of Rows	Contact Shape	Insulation Material	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Material	Number of Positions	Contact Type	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. STMM-115-01-S-D	Tin	Keying Slot	Solder	-55 °C	125 °C	30 Áin	0.76 Ám	All	Black	3 A	Header	Shrouded - 4 Wall	Gold	0.1 in	2.54 mm	2	Square	Liquid Crystal Polymer (LCP)	Through Hole	2.34 mm	0.092 in	Phosphor Bronze	30	Male Pin	6.48 mm	0.255 in	4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire
Samtec Inc. STMM-115-02-L-D-SM-LC	Tin	Board Lock Keying Slot	Solder	-55 °C	125 °C	10 çin	0.25 çm	All	Black	3 A	Header	Shrouded - 4 Wall	Gold	0.12 in	3.05 mm	2	Square	Liquid Crystal Polymer (LCP)	Surface Mount			Phosphor Bronze	30	Male Pin			4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire
Samtec Inc. STMM-115-01-S-D-SM-P	Tin	Keying Slot Pick and Place	Solder	-55 °C	125 °C	30 Áin	0.76 Ám	All	Black	3 A	Header	Shrouded - 4 Wall	Gold	0.1 in	2.54 mm	2	Square	Liquid Crystal Polymer (LCP)	Surface Mount			Phosphor Bronze	30	Male Pin			4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire
Samtec Inc. STMM-115-01-S-D-SM	Tin	Keying Slot	Solder	-55 °C	125 °C	30 Áin	0.76 Ám	All	Black	3 A	Header	Shrouded - 4 Wall	Gold	0.1 in	2.54 mm	2	Square	Liquid Crystal Polymer (LCP)	Surface Mount			Phosphor Bronze	30	Male Pin			4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire
Samtec Inc. STMM-115-01-G-D-LC	Gold	Board Lock Keying Slot	Solder	-55 °C	125 °C	20 µin	0.51 µm	All	Black	3 A	Header	Shrouded - 4 Wall	Gold	0.1 in	2.54 mm	2	Square	Liquid Crystal Polymer (LCP)	Through Hole	2.34 mm	0.092 in	Phosphor Bronze	30	Male Pin	6.48 mm	0.255 in	4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire	3 µin	0.076 µm
Samtec Inc. STMM-115-02-T-D-SM	Tin	Keying Slot	Solder	-55 °C	105 ░C			All	Black	3 A	Header	Shrouded - 4 Wall		0.12 in	3.05 mm	2	Square	Liquid Crystal Polymer (LCP)	Surface Mount			Phosphor Bronze	30	Male Pin			4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire
Samtec Inc. STMM-115-01-F-D-SM	Tin	Keying Slot	Solder	-55 °C	125 °C	3 µin	0.076 µm	All	Black	3 A	Header	Shrouded - 4 Wall	Gold	0.1 in	2.54 mm	2	Square	Liquid Crystal Polymer (LCP)	Surface Mount			Phosphor Bronze	30	Male Pin			4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire
Samtec Inc. STMM-115-02-T-D-SM-LC-K-TR	Tin	Board Lock Keying Slot Pick and Place	Solder	-55 °C	105 ░C			All	Black	3 A	Header	Shrouded - 4 Wall		0.12 in	3.05 mm	2	Square	Liquid Crystal Polymer (LCP)	Surface Mount			Phosphor Bronze	30	Male Pin			4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire
Samtec Inc. STMM-115-02-S-D-SM-LC	Tin	Board Lock Keying Slot	Solder	-55 °C	125 °C	30 Áin	0.76 Ám	All	Black	3 A	Header	Shrouded - 4 Wall	Gold	0.12 in	3.05 mm	2	Square	Liquid Crystal Polymer (LCP)	Surface Mount			Phosphor Bronze	30	Male Pin			4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire
Samtec Inc. STMM-115-02-SM-D-SM-LC	Tin	Board Lock Keying Slot	Solder	-55 °C	125 °C	30 Áin	0.76 Ám	All	Black	3 A	Header	Shrouded - 4 Wall	Gold	0.12 in	3.05 mm	2	Square	Liquid Crystal Polymer (LCP)	Surface Mount			Phosphor Bronze	30	Male Pin			4.83 mm	0.19 in	Push-Pull	0.079 in	2 mm	0.079 in	2 mm	Board to Cable/Wire

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.91
		25	$ 3.53
		50	$ 3.28
		100	$ 3.13
		500	$ 2.33
		1000	$ 2.14

STMM-115-02-T-D-SM

Deep-Dive with AI

STMM-115-02-T-D-SM

Deep-Dive with AI

Technical Specifications

STMM-115 Series

Pricing

Description

STMM-115 Series

Documents

STMM Datasheet

2.00 mm Shrouded Terminal Strip

STMM Series Datasheet 03

2.00 mm Shrouded Terminal Strip, Cable Mate

Datasheet

STMM-115 Series
