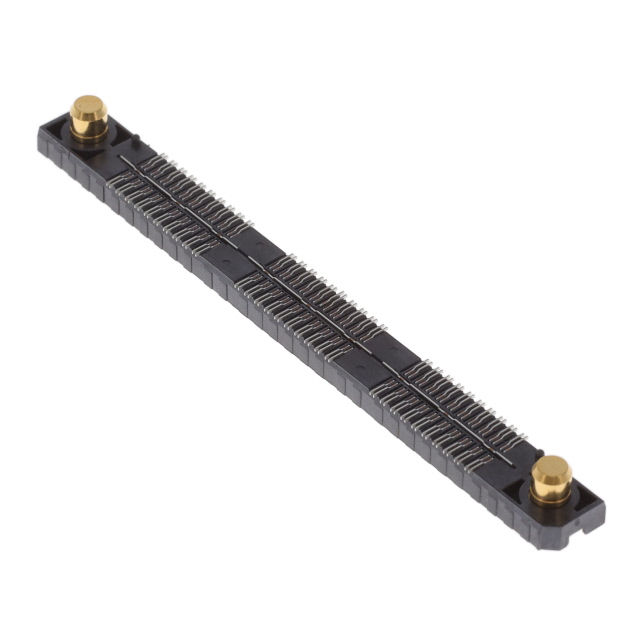

QSH-060-01-L-D-DP-A-RT1

Active

Samtec Inc.

CONN DIFF ARRAY RCPT 120POS SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet QSH Series Other Related Documents 01 +2

QSH-060-01-L-D-DP-A-RT1

Active

Samtec Inc.

CONN DIFF ARRAY RCPT 120POS SMD

Deep-Dive with AI

DocumentsDatasheet QSH Series Other Related Documents 01 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSH-060-01-L-D-DP-A-RT1

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Ground Bus (Plane), Mounting Flange, Board Guide
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm, 25 mm, 8 mm, 16 mm, 11 mm, 14 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	120
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

QSH-060 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Features	Contact Finish	Height Above Board	Height Above Board	Number of Positions	Height Above Board [z]	Height Above Board [z]
Samtec Inc. QSH-060-11-L-D-A-K-TR	10 Áin	0.25 Ám	Center Strip Contacts Receptacle	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	2	Surface Mount	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Pick and Place	Gold	3.25 mm	0.128 in	120
Samtec Inc. QSH-060-01-F-D-A-L	3 Áin	0.076 Ám	Center Strip Contacts Receptacle	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	2	Surface Mount	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Latches	Gold	3.25 mm	0.128 in	120
Samtec Inc. QSH-060-01-L-D-L	10 Áin	0.25 Ám	Center Strip Contacts Receptacle	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	2	Surface Mount	0.5 mm	0.02 in	Ground Bus (Plane) Latches	Gold	3.25 mm	0.128 in	120
Samtec Inc. QSH-060-01-L-D-A-L-RT1	10 Áin	0.25 Ám	Center Strip Contacts Receptacle	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	2	Surface Mount	0.5 mm	0.02 in		Gold	3.25 mm	0.128 in	120
Samtec Inc. QSH-060-01-L-D-LC	10 Áin	0.25 Ám	Center Strip Contacts Receptacle	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	2	Surface Mount	0.5 mm	0.02 in	Board Lock Ground Bus (Plane)	Gold	3.25 mm	0.128 in	120
Samtec Inc. QSH-060-01-L-D-DP-A-RT1	10 Áin	0.25 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	2	Surface Mount	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Mounting Flange	Gold	3.25 mm	0.128 in	120
Samtec Inc. QSH-060-01-L-D-A-L-TR	10 Áin	0.25 Ám	Center Strip Contacts Receptacle	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	2	Surface Mount	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Latches	Gold	3.25 mm	0.128 in	120
Samtec Inc. QSH-060-01-L-D-RA-GP	10 Áin	0.25 Ám	Center Strip Contacts Receptacle		2	Surface Mount Right Angle	0.5 mm	0.02 in	Ground Bus (Plane) Mating Flange	Gold			120	0.333 in	8.45 mm
Samtec Inc. QSH-060-01-H-D-EM2	30 Áin	0.76 Ám	Center Strip Contacts Receptacle		2	Board Edge Straddle Mount	0.5 mm	0.02 in	Ground Bus (Plane)	Gold			120
Samtec Inc. QSH-060-01-H-D-A-FL-TR	30 Áin	0.76 Ám	Center Strip Contacts Receptacle	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	2	Surface Mount	0.5 mm	0.02 in	Board Guide Ground Bus (Plane) Latches	Gold	3.25 mm	0.128 in	120

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.09
		10	$ 14.65
		25	$ 14.27
		50	$ 13.59
		100	$ 11.99
		250	$ 10.38
		500	$ 9.24
		1000	$ 9.09
