TTN1.50SV250

Active

Techflex

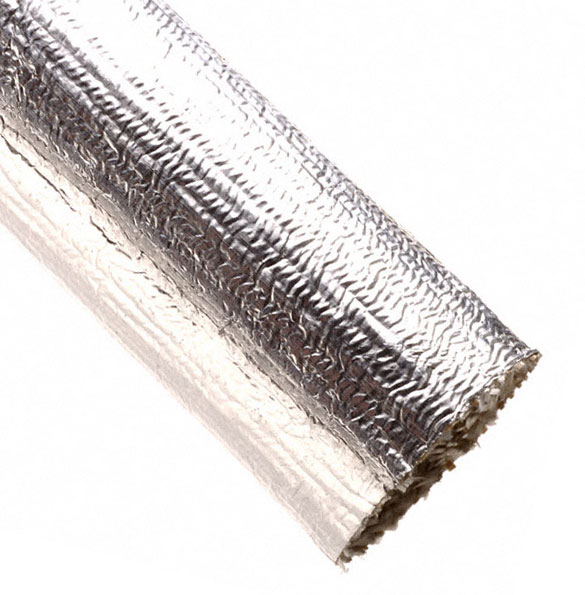

SLEEVING 1.5" ID 250' SILVER

Search across all available documentation for this part.

Active

Techflex

SLEEVING 1.5" ID 250' SILVER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 613.65

General part information

Silver Fiberglass, Aluminized, Halogen Free Convoluted - Braided Sleeving, Insulated 1.500" (38.10mm) 250' (76.20m)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TTN1.50SV250	TTN1 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Silver	Silver
Diameter - Inside [diameter]	1.5 in	1.25 - 1.5 in
Diameter - Inside [diameter]	38.1 mm	31.75 - 38.1 mm
Diameter - Outside [diameter]	39.37 mm	33.02 - 39.37 mm
Diameter - Outside [diameter]	1.55 in	1.3 - 1.55 in
Features	Clean Cut, Chemical Resistant	Clean Cut, Chemical Resistant
Heat Protection	Flame Retardant, Heat Resistant	Flame Retardant, Heat Resistant
Length	-	100 ft
Length	-	30.48 m
Length [x]	76.2 m	76.2 m
Length [x]	250 ft	250 ft
Liquid Protection	Gasoline Resistant	Gasoline Resistant
Material	Halogen Free, Fiberglass, Aluminized	Halogen Free, Fiberglass, Aluminized
Material Flammability Rating	Non Flammable	Non Flammable
Operating Temperature [Max]	255 °C	255 °C
Operating Temperature [Min]	-60 °C	-60 °C
Type	Sleeving, Insulated	Sleeving, Insulated
Type Attributes	Convoluted - Braided	Convoluted - Braided
Wall Thickness [custom]	0.025 in	0.025 in
Wall Thickness [custom]	0.64 mm	0.64 mm

SLEEVING 1.5" ID 250' SILVER

Part	Type	Material	Abrasion Protection	Wall Thickness [custom]	Wall Thickness [custom]	Liquid Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	Material Flammability Rating	Length [x]	Length [x]	Heat Protection	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type Attributes	Color	Length	Length
Techflex TTN1.50SV250	Sleeving, Insulated	Aluminized, Fiberglass, Halogen Free	Abrasion Resistant	0.025 in	0.64 mm	Gasoline Resistant	39.37 mm	1.55 in	Chemical Resistant, Clean Cut	Non Flammable	76.2 m	250 ft	Flame Retardant, Heat Resistant	-60 °C	255 °C	1.5 in	38.1 mm	Convoluted - Braided	Silver
Techflex TTN1.50SV100	Sleeving, Insulated	Aluminized, Fiberglass, Halogen Free	Abrasion Resistant	0.025 in	0.64 mm	Gasoline Resistant	39.37 mm	1.55 in	Chemical Resistant, Clean Cut	Non Flammable			Flame Retardant, Heat Resistant	-60 °C	255 °C	1.5 in	38.1 mm	Convoluted - Braided	Silver	100 ft	30.48 m
Techflex TTN1.25SV250	Sleeving, Insulated	Aluminized, Fiberglass, Halogen Free	Abrasion Resistant	0.025 in	0.64 mm	Gasoline Resistant	33.02 mm	1.3 in	Chemical Resistant, Clean Cut	Non Flammable	76.2 m	250 ft	Flame Retardant, Heat Resistant	-60 °C	255 °C	1.25 in	31.75 mm	Convoluted - Braided	Silver
