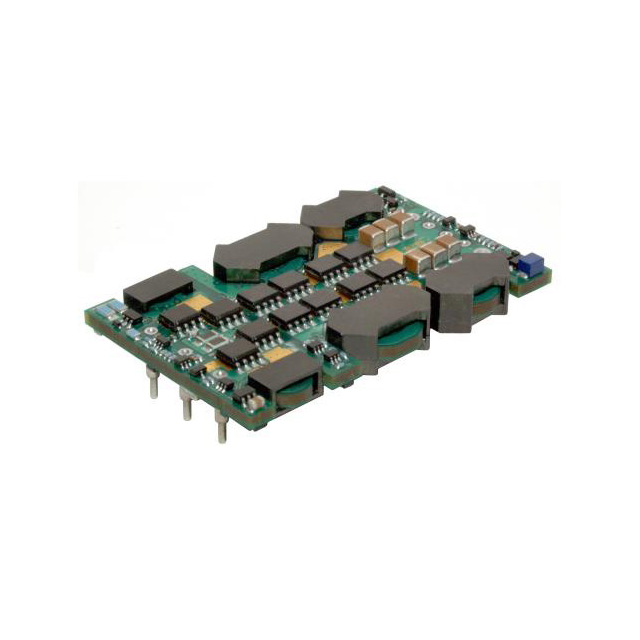

QM48T45018-NDA0G

Active

Bel Power Solutions

DC DC CONVERTER 1.8V 81W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 1.8V 81W

Technical Specifications

Parameters and characteristics for this part

Specification	QM48T45018-NDA0G

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	45 A
Efficiency	87 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	1/4 Brick, 8-DIP Module
Power (Watts)	81 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	10.7 mm
Size / Dimension [z]	0.42 in
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2000 V
Voltage - Output 1	1.8 V

DC DC CONVERTER 1.8V 81W

Part	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Features	Control Features	Current - Output (Max) [Max]	Voltage - Output 1	Package / Case	Voltage - Input (Max) [Max]	Type	Applications	Number of Outputs	Voltage - Input (Min) [Min]
Bel Power Solutions QM48T45018-NDA0G	Through Hole	10.7 mm	1.45 in	36.8 mm	58.4 mm	2.3 in	0.42 in	81 W	87 %	85 °C	-40 °C	2000 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	Active Low, Enable	45 A	1.8 V	1/4 Brick, 8-DIP Module	75 V	Isolated Module	ITE (Commercial)	1	36 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 1.8V 45A 36V - 75V Input
