TSC-P-4A

Active

OptiFuse

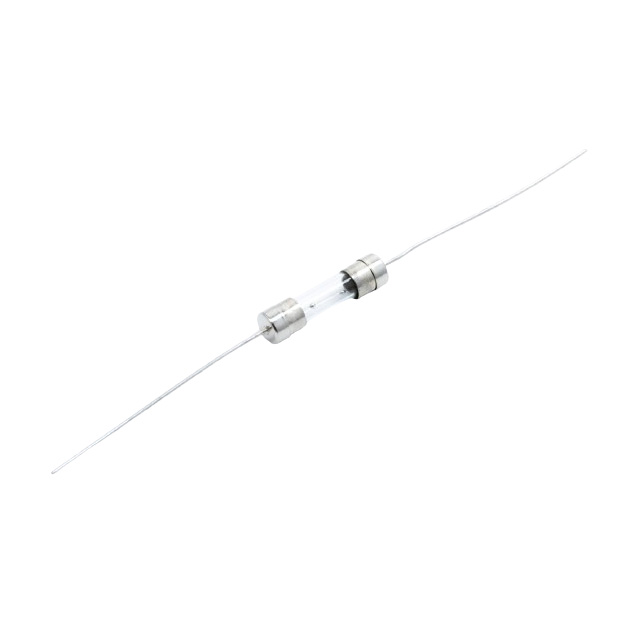

FUSE GLASS 4A 250VAC 5X20MM

Search across all available documentation for this part.

Active

OptiFuse

FUSE GLASS 4A 250VAC 5X20MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TSC-P-4A	TSC-P Series

Approval Agency	UL 248, cULus	UL 248, cULus
Breaking Capacity @ Rated Voltage	200 A	100 - 200 A
Current Rating (Amps)	4 A	0.2 - 4 A
Melting I˛t	-	0.2224 - 2.242
Melting I²t	30.8	30.8
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case [x]	5 mm	5 mm
Package / Case [y]	20 mm	20 mm
Response Time	Slow Blow	Slow Blow
Size / Dimension [diameter]	5.5 mm	5.5 mm
Size / Dimension [diameter]	0.217 "	0.217 "
Size / Dimension [x]	0.827 in	0.827 in
Size / Dimension [x]	21 mm	21 mm
Voltage Rating - AC	250 V	250 V

FUSE GLASS 1A 250VAC 5X20MM

Part	Approval Agency	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Melting I˛t	Current Rating (Amps)	Response Time	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case [x]	Package / Case [y]	Melting I²t
OptiFuse TSC-P-1A	cULus, UL 248	100 A	250 V	2.242	1 A	Slow Blow	5.5 mm	0.827 in	0.217 "	21 mm	-55 °C	125 °C	Through Hole	5 mm	20 mm
OptiFuse TSC-P-200MA	cULus, UL 248	100 A	250 V	0.2224	0.2 A	Slow Blow	5.5 mm	0.827 in	0.217 "	21 mm	-55 °C	125 °C	Through Hole	5 mm	20 mm
OptiFuse TSC-P-4A	cULus, UL 248	200 A	250 V		4 A	Slow Blow	5.5 mm	0.827 in	0.217 "	21 mm	-55 °C	125 °C	Through Hole	5 mm	20 mm	30.8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 A 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
