FTSH-135-04-L-D

Active

Samtec Inc.

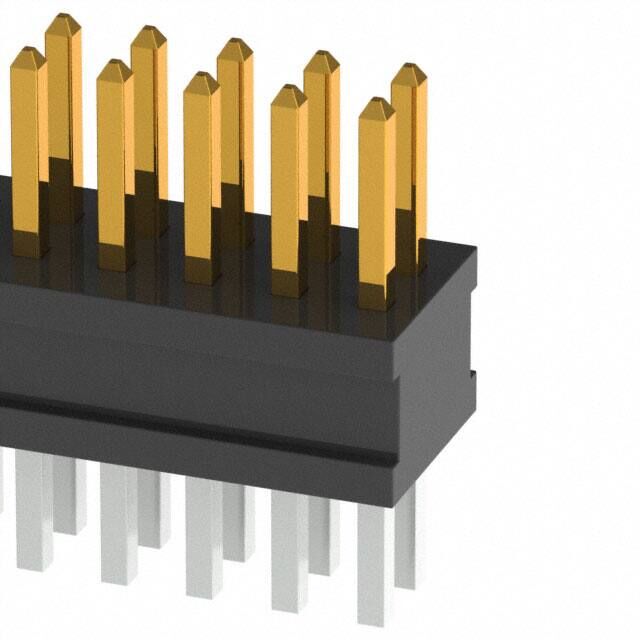

CONN UNSHROUDED HEADER HDR 70 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTSH Datasheet Datasheet +2

FTSH-135-04-L-D

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 70 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE TUBE

Deep-Dive with AI

DocumentsFTSH Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTSH-135-04-L-D

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.15 in
Contact Length - Mating	3.81 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.51 mm
Insulation Height	0.099 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	70
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.6 mm
Overall Contact Length	0.339 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTSH-135 Series

Part	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Insulation Color	Contact Shape	Termination	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Rows	Connector Type	Contact Finish - Mating	Fastening Type	Contact Length - Post	Contact Length - Post	Insulation Material	Number of Positions	Pitch - Mating	Pitch - Mating	Style	Contact Type	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Features	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. FTSH-135-02-F-MT	Unshrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Surface Mount Right Angle Through Hole	3 µin	0.076 µm	UL94 V-0	Phosphor Bronze	3.43 mm	0.135 "	Black	Square	Solder	All	1.9 mm	0.075 in	2	Cuttable Header	Gold	Push-Pull	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin
Samtec Inc. FTSH-135-01-L-DV	Unshrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Surface Mount	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	2.51 mm	0.099 in	Black	Square	Solder	All			2	Cuttable Header	Gold	Push-Pull			Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin	3.05 mm	0.12 in
Samtec Inc. FTSH-135-04-F-DV	Unshrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Surface Mount	3 µin	0.076 µm	UL94 V-0	Phosphor Bronze	2.51 mm	0.099 in	Black	Square	Solder	All			2	Cuttable Header	Gold	Push-Pull			Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin	3.81 mm	0.15 in
Samtec Inc. FTSH-135-02-F-D	Unshrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Through Hole	3 µin	0.076 µm	UL94 V-0	Phosphor Bronze	2.51 mm	0.099 in	Black	Square	Solder	All	1.9 mm	0.075 in	2	Cuttable Header	Gold	Push-Pull	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin			6.73 mm	0.265 in
Samtec Inc. FTSH-135-04-F-D	Unshrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Through Hole	3 µin	0.076 µm	UL94 V-0	Phosphor Bronze	2.51 mm	0.099 in	Black	Square	Solder	All			2	Cuttable Header	Gold	Push-Pull	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin	3.81 mm	0.15 in	8.6 mm	0.339 in
Samtec Inc. FTSH-135-01-F-DH-A	Unshrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Surface Mount Right Angle	3 µin	0.076 µm	UL94 V-0	Phosphor Bronze	3.43 mm	0.135 "	Black	Square	Solder	All			2	Cuttable Header	Gold	Push-Pull			Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin	3.05 mm	0.12 in			Board Guide
Samtec Inc. FTSH-135-02-F-D-RA-ES	Shrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Through Hole Right Angle	3 µin	0.076 µm	UL94 V-0	Phosphor Bronze	3.43 mm	0.135 "	Black	Square	Solder	All	1.9 mm	0.075 in	2	Cuttable Header	Gold	Push-Pull			Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin					End Shrouds	0.12 in	3.05 mm
Samtec Inc. FTSH-135-01-F-MT	Unshrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Surface Mount Right Angle Through Hole	3 µin	0.076 µm	UL94 V-0	Phosphor Bronze	3.43 mm	0.135 "	Black	Square	Solder	All			2	Cuttable Header	Gold	Push-Pull	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin	3.05 mm	0.12 in
Samtec Inc. FTSH-135-04-LM-DH-A	Unshrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Surface Mount Right Angle	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	3.43 mm	0.135 "	Black	Square	Solder	All			2	Cuttable Header	Gold	Push-Pull			Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin	3.81 mm	0.15 in			Board Guide
Samtec Inc. FTSH-135-04-L-D	Unshrouded	0.05 in	1.27 mm	Tin	-55 °C	125 °C	Through Hole	10 çin	0.25 çm	UL94 V-0	Phosphor Bronze	2.51 mm	0.099 in	Black	Square	Solder	All			2	Cuttable Header	Gold	Push-Pull	0.09 "	2.29 mm	Liquid Crystal Polymer (LCP)	70	0.05 in	1.27 mm	Board to Board Cable	Male Pin	3.81 mm	0.15 in	8.6 mm	0.339 in
