929550-01-02-EU
Active3M (TC)
80001236688 929550-01-02-EU=2/HDR/PS/1R/RA/.295/ST .130/10AVE/ROHS
Deep-Dive with AI
Search across all available documentation for this part.
929550-01-02-EU
Active3M (TC)
80001236688 929550-01-02-EU=2/HDR/PS/1R/RA/.295/ST .130/10AVE/ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 929550-01-02-EU |
|---|---|
| Connector Type | Breakaway, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 10 çin |
| Contact Finish Thickness - Post | 0.25 çm |
| Contact Length - Mating | 7.49 mm |
| Contact Length - Mating | 0.295 in |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.5 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
929550 Series
| Part | Insulation Color | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Material | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Positions Loaded | Contact Type | Termination | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Mounting Type | Contact Length - Mating | Contact Length - Mating | Contact Shape | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Contact Finish - Mating | Shrouding | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 36 | |
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Polycyclohexylenedimethylene Terephthalate (PCT) | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 31 | |
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 30 | |
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 11 | |
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 7 | |
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 33 | |
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Polycyclohexylenedimethylene Terephthalate (PCT) | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 2 | |
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Polycyclohexylenedimethylene Terephthalate (PCT) | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 29 | |
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Polycyclohexylenedimethylene Terephthalate (PCT) | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 16 | |
3M (TC) | Black | 1 | -40 °C | 105 ░C | Copper Alloy | 2.5 A | 10 çin | 0.25 çm | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 0.1 in | 2.54 mm | Push-Pull | All | Male Pin | Solder | Gold | 0.13 in | 3.3 mm | Through Hole Right Angle | 7.49 mm | 0.295 in | Square | Breakaway Header | 10 çin | 0.25 çm | UL94 V-0 | Gold | Unshrouded | 24 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
929550 Series

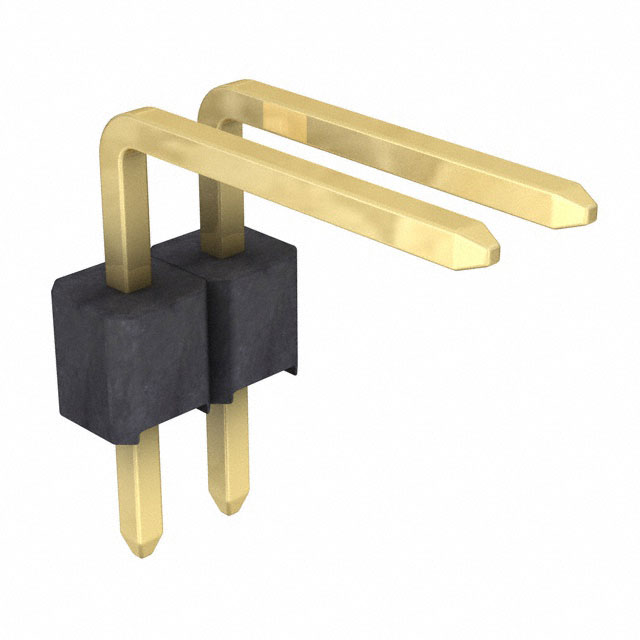

Connector Header Through Hole, Right Angle 2 position 0.100" (2.54mm)
