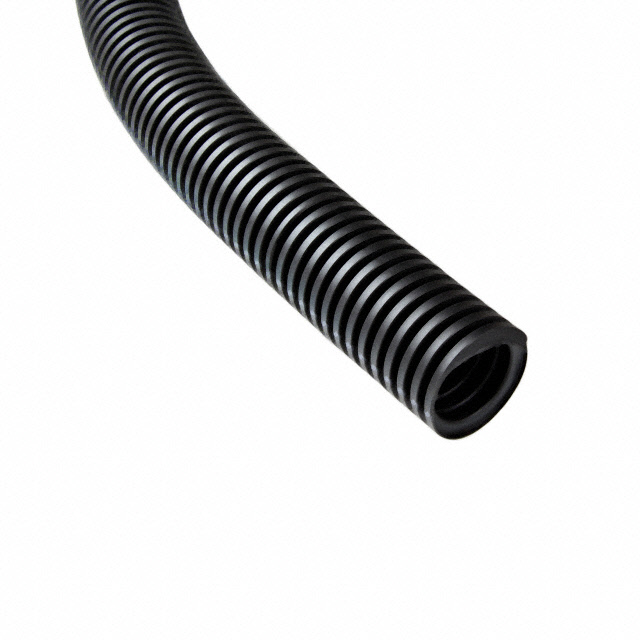

CSEZ1060A

Active

Essentra Access Solutions

CONDUIT, NYLON (POLYAMIDE), BLACK, GREY, 0.7 ", CSEZ SERIES

Search across all available documentation for this part.

Active

Essentra Access Solutions

CONDUIT, NYLON (POLYAMIDE), BLACK, GREY, 0.7 ", CSEZ SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	CSEZ1060A

Diameter - Inside, Expanded [diameter]	13.11 mm
Diameter - Inside, Expanded [diameter]	0.516 in
Diameter - Inside, Non-Expanded [diameter]	0.5 in
Diameter - Inside, Non-Expanded [diameter]	12.7 mm
Diameter - Outside, Non-Expanded [diameter]	0.664 in
Diameter - Outside, Non-Expanded [diameter]	16.87 mm
Features	Dispenser Box Supplied
Length	100 ft
Length	30.48 m
Material	Nylon
Material Flammability Rating	UL94 HB
Operating Temperature [Max]	149 °C
Operating Temperature [Min]	-40 °C
Type	Slit Wrap
Type Attributes	Slit Harness
Wall Thickness	0.05 in
Wall Thickness	1.27 mm

Part	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Features	Length	Length	Type	Type Attributes	Wall Thickness	Wall Thickness	Material Flammability Rating	Material	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]
Essentra Access Solutions CSEZ1060A	0.664 in	16.87 mm	Dispenser Box Supplied	100 ft	30.48 m	Slit Wrap	Slit Harness	0.05 in	1.27 mm	UL94 HB	Nylon	13.11 mm	0.516 in	149 °C	-40 °C	0.5 in	12.7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Slit Wrap 0.664" (16.87mm) X 100' (30.48m) Black, Gray
