131444

Active

TE Connectivity AMP Connectors

CONN WIRE PIN TERM 14-16AWG PG

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN WIRE PIN TERM 14-16AWG PG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	131444	1314 Series

Color	Blue	Green, Yellow, Blue
Contact Finish	Tin	Tin
Contact Material	Copper	Phosphor Bronze, Copper
Contact Mating Finish	-	Tin
Contact Tail Length	-	3.4 mm
Contact Tail Length	-	0.134 in
Current - UL	-	11 A
Features	Serrated Termination	Serrated Termination
Header Orientation	-	90°, Right Angle
Insulation	Insulated	Insulated
Insulation Diameter [Max]	4.9 mm	4.9 - 6.4 mm
Insulation Diameter [Max]	0.193 in	0.193 - 0.252 "
Insulation Diameter [Min]	3 mm	3 - 3.81 mm
Insulation Diameter [Min]	0.118 in	0.118 - 0.15 "
Insulation Height	-	7.3 mm
Insulation Height	-	0.287 in
Length - Overall [x]	0.906 in	0.906 - 1.157 in
Length - Overall [x]	23.01 mm	23.01 - 29.39 mm
Length - Pin [x]	10.31 mm	10.31 - 11.81 mm
Length - Pin [x]	0.406 in	0.406 - 0.465 in
Length - Termination	-	17.6 mm
Length - Termination	-	0.693 in
Length - Termination [x]	12.7 mm	12.7 mm
Length - Termination [x]	0.5 in	0.5 in
Material - Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Material Flammability Rating	-	UL94 V-0
Mounting Type	-	Through Hole
Number of Levels	-	1
Number of Positions	-	2
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Pin Diameter	0.031 ", 0.116 "	0.031 - 0.116 "
Pin Diameter	0.8 mm, 2.95 mm	0.8 - 2.95 mm
Pin Diameter	-	0.031 in
Pin Diameter	-	0.8 mm
Pin Diameter	-	0.165 "
Pin Diameter	-	4.2 mm
Pitch	-	3.5 mm
Pitch	-	0.138 in
Positions Per Level	-	2
Termination	Crimp	Crimp
Termination Style	-	Solder
Type	-	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	-	300 V
Wire Gauge	-	12 AWG
Wire Gauge	-	10 AWG

2 POS TERMI-BLOK HDR 900 POLAR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Levels	Contact Tail Length	Contact Tail Length	Termination Style	Positions Per Level	Number of Positions	Header Orientation	Contact Mating Finish	Voltage - UL	Type	Material Flammability Rating	Insulation Height	Insulation Height	Contact Material	Color	Mounting Type	Current - UL	Length - Pin [x]	Length - Pin [x]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Material - Insulation	Insulation	Length - Overall [x]	Length - Overall [x]	Pin Diameter [y]	Pin Diameter [y]	Pin Diameter [x]	Pin Diameter [x]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Termination	Length - Termination	Termination	Features	Pin Diameter	Pin Diameter	Length - Termination [x]	Length - Termination [x]
TE Connectivity AMP Connectors 1314341	-40 °C	105 ░C	3.5 mm	0.138 in	1	3.4 mm	0.134 in	Solder	2	2	90°, Right Angle	Tin	300 V	Header, Male Pins, Shrouded (4 Side)	UL94 V-0	7.3 mm	0.287 in	Phosphor Bronze	Green	Through Hole	11 A
TE Connectivity AMP Connectors 131445																		Copper	Yellow			11.81 mm	0.465 in	12 AWG	10 AWG	Tin	Poly-Vinyl Chloride (PVC)	Insulated	1.157 in	29.39 mm	0.031 in	0.8 mm	0.165 "	4.2 mm	0.15 "	6.4 mm	3.81 mm	0.252 "	17.6 mm	0.693 in	Crimp	Serrated Termination
TE Connectivity AMP Connectors 131444																		Copper	Blue			10.31 mm	0.406 in			Tin	Poly-Vinyl Chloride (PVC)	Insulated	0.906 in	23.01 mm					0.118 in	4.9 mm	3 mm	0.193 in			Crimp	Serrated Termination	0.031 ", 0.116 "	0.8 mm, 2.95 mm	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

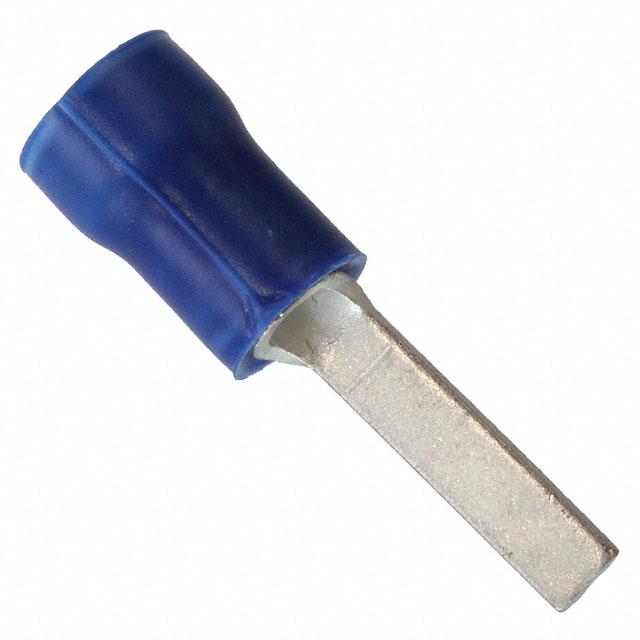

Wire Pin Terminal Connector 14-16 AWG Plasti-Grip Crimp

Technical documentation and resources

No documents available
