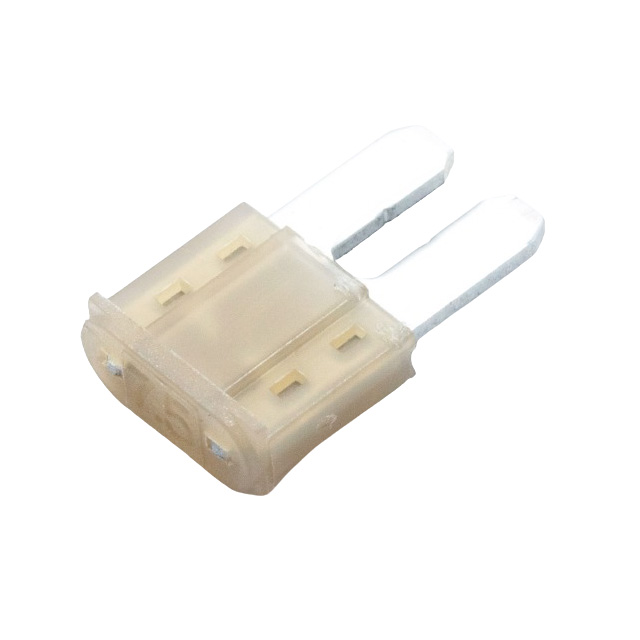

ANT-7.5A

Active

OptiFuse

FUSE AUTO 7.5A 32VDC BLADE MICRO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 7.5A 32VDC BLADE MICRO

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-7.5A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Brown
Current Rating (Amps)	7.5 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Micro
Response Time	Fast Blow
Size / Dimension [x]	0.358 in
Size / Dimension [x]	9.1 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.8 mm
Size / Dimension [z]	7.9 mm
Size / Dimension [z]	0.311 "
Voltage Rating - DC	32 V

FUSE AUTO 7.5A 32VDC BLADE MICRO

Part	Response Time	Breaking Capacity @ Rated Voltage	Fuse Type	Approval Agency	Voltage Rating - DC	Package / Case	Mounting Type	Color	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]
OptiFuse ANT-7.5A	Fast Blow	1 kA	Automotive	ISO, SAE	32 V	Blade, Micro	Requires Holder	Brown	7.5 A	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7.5 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro
