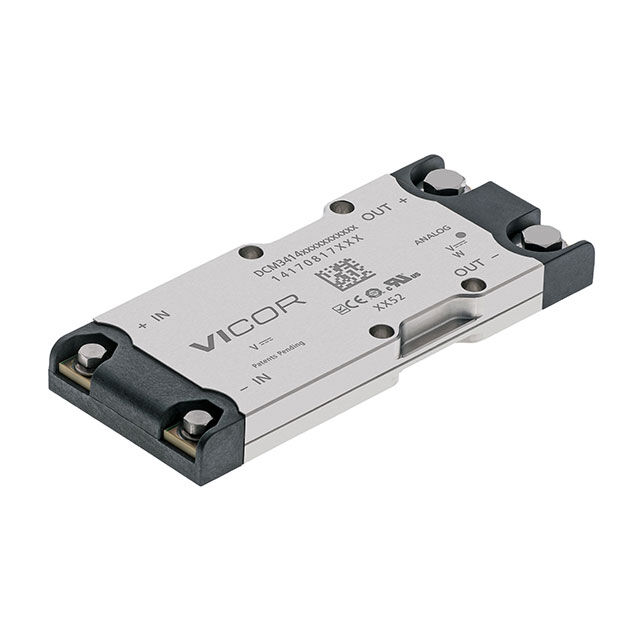

DCM3414V50M26C2T01

Active

DC/DC CONVERTER 24V 320W

Active

DC/DC CONVERTER 24V 320W

Description

General part information

Enclosed DC DC Converter 1 Output 24V 13.33A 50V Input

Parameters and characteristics for this part

Part	Voltage - Output 1	Applications	Type	Voltage - Input (Min)	Number of Outputs	Efficiency	Features	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Current - Output (Max)	Mounting Type	Voltage - Isolation	Package / Case	Approval Agency	Power (Watts)	Standard Number
Vicor Corporation DCM3414B50M53C2C05
Vicor Corporation DCM3414B75H06A6T09
Vicor Corporation DCM3414B75H31C2C05	28 V	ITE (Commercial)	Isolated Module	36 V	1	91.8 %	OCP OTP OVP Remote On/Off SCP UVLO	100 °C	-20 °C	75 V	3.38 in	0.37 in	1.4 in	11.43 A	Through Hole	2.25 kV	9-DIP Module
Vicor Corporation DCM3414V50M17C2T01	15 V	ITE (Commercial)	Enclosed	16 V	1	92.2 %		100 °C	-40 °C	50 V p-p	3.38 in	0.37 in	1.4 in	21.33 A	Chassis Mount			CE cTUVus	320 W
Vicor Corporation DCM3414V50M31C2M01	28 V	ITE (Commercial)	Enclosed	16 V	1	93.3 %		125 °C	-55 °C	50 V p-p	3.38 in	0.37 in	1.4 in	11.43 A	Chassis Mount	1500 Vrns		CE cTUVus cURus	320 W	60950-1
Vicor Corporation DCM3414B50M13C2M09
Vicor Corporation DCM3414V75H13C2T01	12 V	ITE (Commercial)	Enclosed	36 V	1	91.9 %		125 °C	-40 °C	75 V	3.38 in	0.37 in	1.4 in	26.67 A	Chassis Mount	2.25 kV		CE cTUVus cURus	320 W	60950-1
Vicor Corporation DCM3414B50M06A8M05
Vicor Corporation DCM3414V50M26C2T01	24 V	ITE (Commercial)	Enclosed	16 V	1	90.7 %		125 °C	-40 °C	50 V p-p	3.38 in	0.37 in	1.4 in	13.33 A	Chassis Mount			CE	320 W
Vicor Corporation DCM3414V50M13C2C01	12 V	ITE (Commercial)	Enclosed	16 V	1	91.5 %		125 °C	-20 °C	50 V p-p	3.38 in	0.37 in	1.4 in	26.67 A	Chassis Mount			CE	320 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
