KHAU-17A12H-120

Active

TE Connectivity Potter & Brumfield Relays

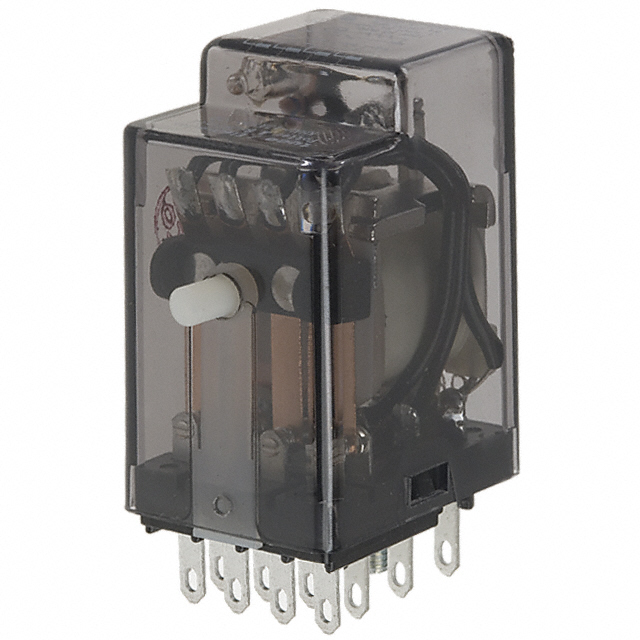

RELAY GEN PURPOSE 4PDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

KHAU-17A12H-120

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 5A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KHAU-17A12H-120

Approval Agency	CSA, UR
Coil Current	11 mA
Coil Insulation	Class B
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	5 A
Features	Test Button, Lighted Indicator
Mounting Type	Socketable
Must Operate Voltage	102 VAC
Operate Time	13 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-45 °C
Relay Type	General Purpose
Release Time	6 ms
Switching Voltage	240 VAC
Termination Style	Plug In

KHAU-17A Series

Part	Must Operate Voltage	Contact Rating (Current)	Release Time	Coil Voltage	Termination Style	Switching Voltage	Approval Agency	Coil Current	Operate Time	Coil Type	Features	Contact Material	Relay Type	Contact Form	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Coil Insulation	Coil Resistance
TE Connectivity Potter & Brumfield Relays KHAU-17A12H-120	102 VAC	5 A	6 ms	120 VAC	Plug In	240 VAC	CSA UR	11 mA	13 ms	Non Latching	Lighted Indicator Test Button	Silver Cadmium Oxide (AgCdO)	General Purpose	4PDT (4 Form C)	Socketable	-45 °C	70 °C	Class B
TE Connectivity Potter & Brumfield Relays KHAU-17A18-240	204 VAC	3 A	6 ms	240 VAC	Plug In	240 VAC	CSA UR	6 mA	13 ms	Non Latching		Silver (Ag)	General Purpose	4PDT (4 Form C)	Socketable	-45 °C	70 °C	Class B	12 kOhms
TE Connectivity Potter & Brumfield Relays KHAU-17A11-240	204 VAC	3 A	6 ms	240 VAC	Plug In	240 VAC	CSA UR	6 mA	13 ms	Non Latching		Silver (Ag)	General Purpose	4PDT (4 Form C)	Socketable	-45 °C	70 °C	Class B	12 kOhms
TE Connectivity Potter & Brumfield Relays KHAU-17A11-24		3 A	6 ms	24 VAC	Plug In	240 VAC	CSA UR	52 mA	13 ms	Non Latching		Silver (Ag)	General Purpose	4PDT (4 Form C)	Socketable	-45 °C	70 °C	Class B	160 Ohms
TE Connectivity Potter & Brumfield Relays KHAU-17A12-12	10.2 VAC	5 A	6 ms	12 VAC/DC	Plug In	240 VAC	CSA UR	100 mA	13 ms	Non Latching		Silver Cadmium Oxide (AgCdO)	General Purpose	4PDT (4 Form C)	Socketable	-45 °C	70 °C	Class B	43 Ohms
TE Connectivity Potter & Brumfield Relays KHAU-17A12-24		5 A	6 ms	24 VAC	Plug In	240 VAC	CSA UR	52 mA	13 ms	Non Latching		Silver Cadmium Oxide (AgCdO)	General Purpose	4PDT (4 Form C)	Socketable	-45 °C	70 °C	Class B	160 Ohms
TE Connectivity Potter & Brumfield Relays KHAU-17A12-120	102 VAC	5 A	6 ms	120 VAC	Plug In	240 VAC	CSA UR	11 mA	13 ms	Non Latching		Silver Cadmium Oxide (AgCdO)	General Purpose	4PDT (4 Form C)	Socketable	-45 °C	70 °C	Class B

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.80
		10	$ 22.61
		25	$ 21.42
		50	$ 20.23
		100	$ 19.04
		250	$ 17.85
		500	$ 16.66

Description

General part information

KHAU-17A Series

General Purpose Relay 4PDT (4 Form C) 120VAC Coil Socketable
