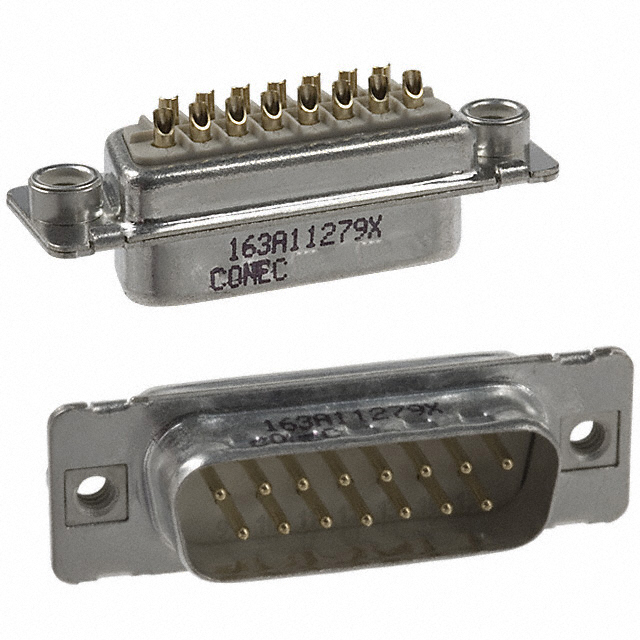

163A11279X

Active

Amphenol CONEC

CONN D-SUB PLUG 15POS SLDR CUP

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB PLUG 15POS SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	163A11279X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Voltage Rating	125 VDC
Wire Gauge	20 AWG

Part	Current Rating (Amps)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Mounting Type	Number of Rows	Material Flammability Rating	Contact Material	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge	Number of Positions	Color	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Flange Feature	Voltage Rating	Shell Size, Connector Layout	Shell Size, Connector Layout
Amphenol CONEC 163A11269X	7.5 A	Grounding Indents	-55 °C	125 °C	D-Sub	Free Hanging (In-Line)	2	UL94 V-0	Copper Alloy	Signal	8 çin	0.203 çm	Gold	20 AWG	9	Black	Male Pins Plug	DE E	1	Polybutylene Terephthalate (PBT) Glass Filled	Cable Side	125 VDC
Amphenol CONEC 163A11279X	7.5 A	Grounding Indents	-55 °C	125 °C	D-Sub	Free Hanging (In-Line)	2	UL94 V-0	Copper Alloy	Signal	8 çin	0.203 çm	Gold	20 AWG	15	Black	Male Pins Plug			Polybutylene Terephthalate (PBT) Glass Filled	Cable Side	125 VDC	2
Amphenol CONEC 163A11299X	7.5 A	Grounding Indents	-55 °C	125 °C	D-Sub	Free Hanging (In-Line)	2	UL94 V-0	Copper Alloy	Signal	8 çin	0.203 çm	Gold	20 AWG	37	Black	Male Pins Plug			Polybutylene Terephthalate (PBT) Glass Filled	Cable Side	125 VDC		4 (DC C)
Amphenol CONEC 163A11289X	7.5 A	Grounding Indents	-55 °C	125 °C	D-Sub	Free Hanging (In-Line)	2	UL94 V-0	Copper Alloy	Signal	8 çin	0.203 çm	Gold	20 AWG		Black	Male Pins Plug	B DB	3	Polybutylene Terephthalate (PBT) Glass Filled	Cable Side	125 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Plug, Male Pins Connector
