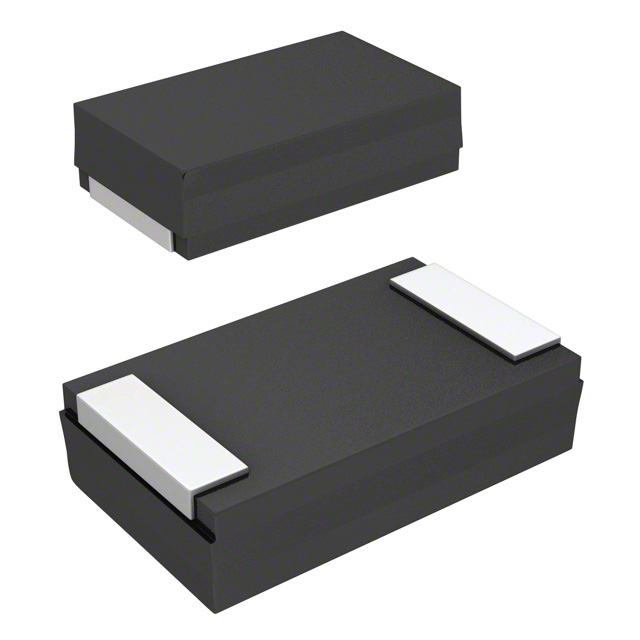

16TQC33MYFS

Obsolete

Panasonic Electronic Components

CAP TANT POLYMER 33UF 16VDC D12 CASE 20%( 7.3 X 4.3 X 1.15MM) INWARD L SMD 7343 0.04 OHM 105°C T/R

16TQC33MYFS

Obsolete

Panasonic Electronic Components

CAP TANT POLYMER 33UF 16VDC D12 CASE 20%( 7.3 X 4.3 X 1.15MM) INWARD L SMD 7343 0.04 OHM 105°C T/R

Description Specifications Series Pricing CAD Documents

Description

General part information

16TQC Series

33 µF Molded Tantalum Polymer Capacitor 16 V 2917 (7343 Metric) 40mOhm @ 100kHz

Technical Specifications

Parameters and characteristics for this part

Specification	16TQC33MYFS

Capacitance	33 µF
ESR (Equivalent Series Resistance)	40 mOhm
Features	General Purpose
Height - Seated (Max)	0.049 in
Lifetime	2000 Hrs
Manufacturer Size Code	D12
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	2917 (7343 Metric)
Size / Dimension Length	0.287 in
Size / Dimension Width	0.169 in
Tolerance	20 %
Type	Molded
Voltage - Rated	16 V

16TQC Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Rated	Lifetime	Type	Tolerance	Manufacturer Size Code	Package Diameter	Package / Case	Package Name	Capacitance	Size / Dimension Length	Size / Dimension Width	Features	ESR (Equivalent Series Resistance)	Mounting Type	Height - Seated (Max)
Panasonic Electronic Components 16TQC47MYFB	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	B2	3528 mm	1411 (3528 Metric)	1411	47 µF	0.138 in	0.11 in	General Purpose	90 mOhm	Surface Mount	0.079 in
Panasonic Electronic Components 16TQC33MYFS	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	D12		2917 (7343 Metric)		33 µF	0.287 in	0.169 in	General Purpose	40 mOhm	Surface Mount	0.049 in
Panasonic Electronic Components 16TQC220MD3	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	D3L		2917 (7343 Metric)		220 µF	0.287 in	0.169 in	General Purpose	50 mOhm	Surface Mount	0.118 in
Panasonic Electronic Components 16TQC150MYF	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	D3L		2917 (7343 Metric)		150 µF	0.287 in	0.169 in	General Purpose	50 mOhm	Surface Mount	0.118 in
Panasonic Electronic Components 16TQC68MYF	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	D2		2917 (7343 Metric)		68 µF	0.287 in	0.169 in	General Purpose	50 mOhm	Surface Mount	0.079 in
Panasonic Electronic Components 16TQC100MYF	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	D2		2917 (7343 Metric)		100 µF	0.287 in	0.169 in	General Purpose	50 mOhm	Surface Mount	0.079 in
Panasonic Electronic Components 16TQC33MYFB	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	B2	3528 mm	1411 (3528 Metric)	1411	33 µF	0.138 in	0.11 in	General Purpose	90 mOhm	Surface Mount	0.079 in
Panasonic Electronic Components 16TQC15M	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	B2	3528 mm	1411 (3528 Metric)	1411	15 µF	0.138 in	0.11 in	General Purpose	90 mOhm	Surface Mount	0.079 in
Panasonic Electronic Components 16TQC47MYFT	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	D15		2917 (7343 Metric)		47 µF	0.287 in	0.169 in	General Purpose	55 mOhm	Surface Mount	0.059 in
Panasonic Electronic Components 16TQC10M	-55 °C	105 °C	16 V	2000 Hrs	Molded	20 %	B2	3528 mm	1411 (3528 Metric)	1411	10 µF	0.138 in	0.11 in	General Purpose	100 mOhm	Surface Mount	0.083 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

POSCAP™ Product Catalog

16TQC33MYFS | Datasheet

One Page Summary EN

Datasheet
