General part information

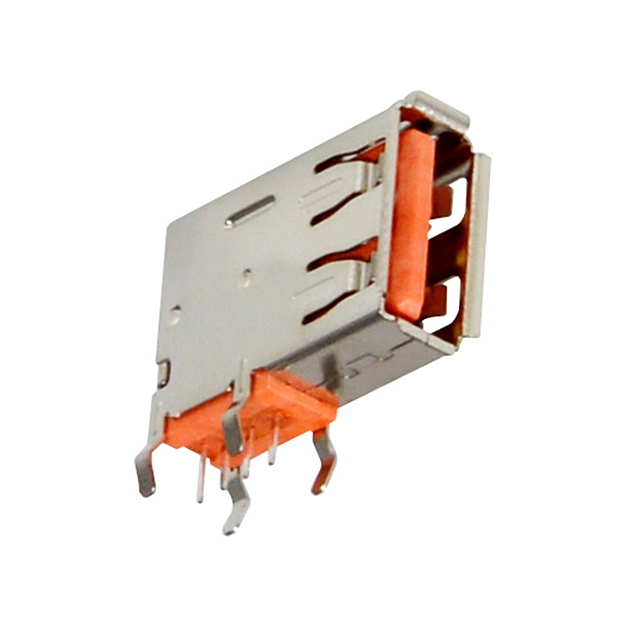

USB Connectors Upright-USB A Orang G-30u Plt-Cont HiRet
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | KUSBXHT-SLAS1N-O30-HRF | KUSBXHT Series |
|---|---|---|
| Connector Type | USB-A (USB TYPE-A) | USB-A (USB TYPE-A), USB-B |
| Contact Finish | Gold | Gold |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Gender | Receptacle | Receptacle |
| Insulation Color | Orange | Orange |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | 1500 | 1500 |
| Mounting Feature | Vertical, Flag | Vertical, Flag, Horizontal |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Through Hole |
| Number of Contacts [custom] | 4 | 4 |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell/Shielding Material | Stainless, Steel | Stainless, Steel |
| Shielding | Unshielded | Unshielded, Shielded |
| Termination | Solder | Solder |
| Voltage - Rated | 30 VAC | 30 VAC |
USB Connectors Upright-USB A Orang G-30u Plt-Cont HiRet
| Part | Mounting Feature | Insulation Color | Voltage - Rated | Current Rating (Amps) | Material Flammability Rating | Number of Contacts [custom] | Connector Type | Gender | Termination | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Number of Ports | Contact Finish | Mating Cycles | Shell/Shielding Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Kycon, Inc. KUSBXHT-SLAS1N-O30-HRF | Flag, Vertical | Orange | 30 VAC | 1.5 A | UL94 V-0 | 4 | USB-A (USB TYPE-A) | Receptacle | Solder | Unshielded | 85 °C | -55 °C | Through Hole, Right Angle | 1 | Gold | 1500 | Stainless, Steel |
Kycon, Inc. KUSBXHT-SLAS1N-O-HRF | Horizontal | Orange | 30 V | 1.5 A | UL94 V-0 | 4 | USB-A (USB TYPE-A) | Receptacle | Solder | Shielded | 85 °C | -55 °C | Through Hole, Right Angle | 1 | Gold | 1500 | Stainless, Steel |
Kycon, Inc. KUSBVXHT-BS1N-O30-HRF | Vertical | Orange | 30 V | 1.5 A | UL94 V-0 | 4 | USB-B | Receptacle | Solder | Unshielded | 85 °C | -55 °C | Through Hole | 1 | Gold | 1500 | Stainless, Steel |
