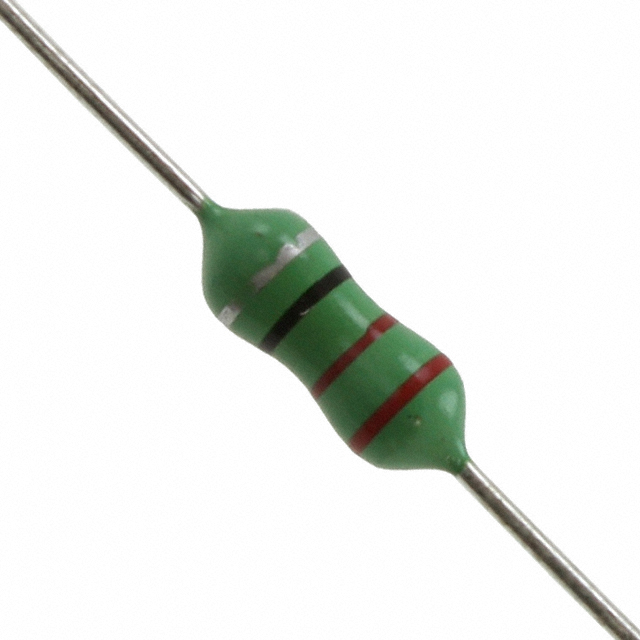

77F101J
ObsoleteBourns Inc.
FIXED IND 100UH 275MA 1.8 OHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
77F101J
ObsoleteBourns Inc.
FIXED IND 100UH 275MA 1.8 OHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 77F101J |
|---|---|
| Current Rating (Amps) | 275 mA |
| DC Resistance (DCR) [Max] | 1.8 Ohm |
| Frequency - Self Resonant | 4.8 MHz |
| Inductance | 100 µH |
| Inductance Frequency - Test | 796 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Q @ Freq | 30, 796 kHz |
| Shielding | Unshielded |
| Size / Dimension [diameter] | 0.157 in |
| Size / Dimension [diameter] | 3.99 mm |
| Size / Dimension [z] | 0.41 " |
| Size / Dimension [z] | 10.41 mm |
| Tolerance | 5 % |
| Type | Wirewound, Drum Core |
77F Series
| Part | Frequency - Self Resonant | Inductance | DC Resistance (DCR) [Max] | Type | Material - Core | Inductance Frequency - Test | Shielding | Mounting Type | Tolerance | Q @ Freq | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] | Size / Dimension [diameter] | Current Rating (Amps) | DC Resistance (DCR) | Q @ Freq [custom] | Q @ Freq [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 34 MHz | 12 µH | 700 mOhm | Drum Core Wirewound | Ferrite | 2.52 MHz | Unshielded | Through Hole | 10 % | 2.52 MHz 75 | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 480 mA | |||
Bourns Inc. | 131 MHz | 1.5 µH | Drum Core Wirewound | Ferrite | 7.96 MHz | Unshielded | Through Hole | 10 % | 7.96 MHz 50 | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 830 mA | 200 mOhm | |||
Bourns Inc. | 1.4 MHz | 1 mH | Drum Core Wirewound | Ferrite | 796 kHz | Unshielded | Through Hole | 5 % | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 100 mA | 14 Ohm | 796 kHz | 50 | ||
Bourns Inc. | 14 MHz | 18 µH | 800 mOhm | Drum Core Wirewound | Ferrite | 2.52 MHz | Unshielded | Through Hole | 10 % | 2.52 MHz 60 | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 430 mA | |||
Bourns Inc. | 45 MHz | 10 µH | 580 mOhm | Drum Core Wirewound | Ferrite | 2.52 MHz | Unshielded | Through Hole | 10 % | 2.52 MHz 85 | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 0.5 A | |||
Bourns Inc. | 4.8 MHz | 100 µH | 1.8 Ohm | Drum Core Wirewound | Ferrite | 796 kHz | Unshielded | Through Hole | 5 % | 30 796 kHz | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 275 mA | |||
Bourns Inc. | 6.3 MHz | 47 µH | 1.3 Ohm | Drum Core Wirewound | Ferrite | 2.52 MHz | Unshielded | Through Hole | 5 % | 2.52 MHz 45 | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 0.34 A | |||
Bourns Inc. | 2.6 MHz | 270 µH | 6 Ohm | Drum Core Wirewound | Ferrite | 796 kHz | Unshielded | Through Hole | 5 % | 60 796 kHz | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 0.145 A | |||
Bourns Inc. | 3.5 MHz | 150 µH | 4 Ohm | Drum Core Wirewound | Ferrite | 796 kHz | Unshielded | Through Hole | 5 % | 60 796 kHz | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 175 mA | |||
Bourns Inc. | 110 MHz | 2.2 µH | 240 mOhm | Drum Core Wirewound | Ferrite | 7.96 MHz | Unshielded | Through Hole | 10 % | 7.96 MHz 50 | 105 ░C | -55 °C | Axial | 0.41 " | 0.157 in | 10.41 mm | 3.99 mm | 750 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
77F Series
100 µH Unshielded Drum Core, Wirewound Inductor 275 mA 1.8Ohm Max Axial
