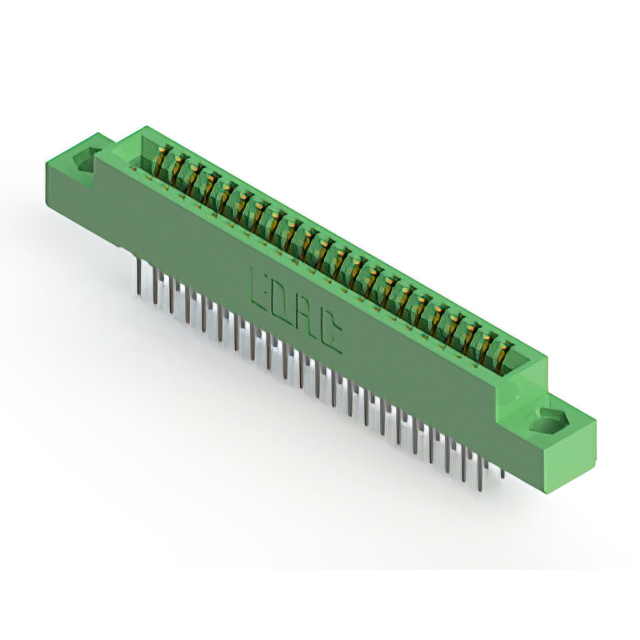

341-044-521-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 44POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Solutions Brochure +1

341-044-521-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 44POS 0.100

Deep-Dive with AI

DocumentsDatasheet Interconnect Solutions Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	341-044-521-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	44
Number of Positions/Bay/Row [custom]	22
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

341-044 Series

Part	Number of Positions/Bay/Row [custom]	Contact Material	Contact Finish	Read Out	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Rows	Material - Insulation	Contact Type	Card Type	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination Rows	Features	Mounting Type	Flange Feature	Gender	Termination	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 341-044-555-207	22	Copper Alloy	Gold	Dual	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	2	Polyester Thermoplastic	Semi Bellows	Non Specified - Dual Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Card Extender	Board Edge Straddle Mount	Flush Mount M3 Threaded Insert Top Opening	Female	Solder Eyelet(s)
EDAC Inc. 341-044-522-107	44	Copper Alloy	Gold	Single	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	1	Polyester Thermoplastic	Semi Bellows	Non Specified - Single Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	1		Through Hole	Flush Mount M3 Threaded Insert Top Opening	Female	Solder
EDAC Inc. 341-044-520-108	44	Copper Alloy	Gold	Single	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	1	Polyester Thermoplastic	Semi Bellows	Non Specified - Single Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	1		Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Female	Solder
EDAC Inc. 341-044-524-207	22	Copper Alloy	Gold	Dual	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	2	Polyester Thermoplastic	Semi Bellows	Non Specified - Dual Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2		Through Hole	Flush Mount M3 Threaded Insert Top Opening	Female	Solder
EDAC Inc. 341-044-524-208	22	Copper Alloy	Gold	Dual	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	2	Polyester Thermoplastic	Semi Bellows	Non Specified - Dual Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2		Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Female	Solder
EDAC Inc. 341-044-521-204	22	Copper Alloy	Gold	Dual	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	2	Polyester Thermoplastic	Semi Bellows	Non Specified - Dual Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2		Through Hole	Flush Mount Top Opening Unthreaded	Female	Solder	3.96 mm	0.156 in
EDAC Inc. 341-044-522-101	44	Copper Alloy	Gold	Single	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	1	Polyester Thermoplastic	Semi Bellows	Non Specified - Single Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	1		Through Hole		Female	Solder
EDAC Inc. 341-044-522-202	22	Copper Alloy	Gold	Dual	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	2	Polyester Thermoplastic	Semi Bellows	Non Specified - Dual Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2		Through Hole	Flush Mount Top Opening Unthreaded	Female	Solder	3.25 mm	0.128 "
EDAC Inc. 341-044-560-208	22	Copper Alloy	Gold	Dual	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	2	Polyester Thermoplastic	Semi Bellows	Non Specified - Dual Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Card Extender	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Female	Solder
EDAC Inc. 341-044-521-208	22	Copper Alloy	Gold	Dual	Green	44	-40 °C	105 ░C	2.54 mm	0.1 in	2	Polyester Thermoplastic	Semi Bellows	Non Specified - Dual Edge	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	2		Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Female	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 12.40

Description

General part information

341-044 Series

44 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green

341-044-521-204
