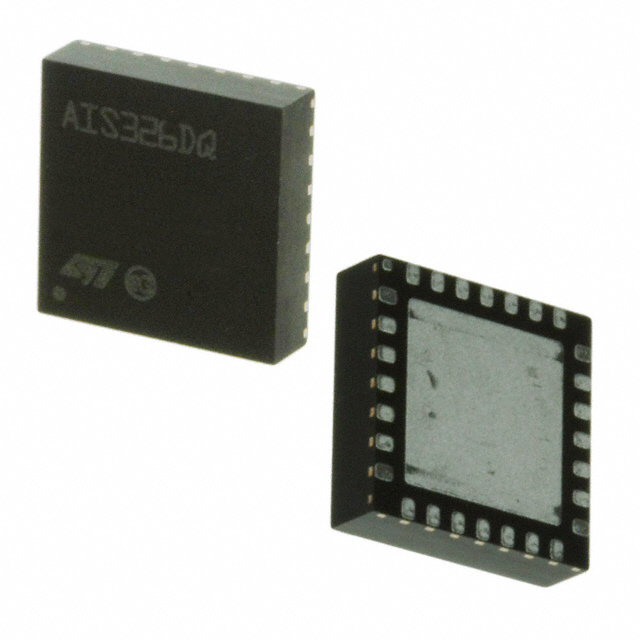

AIS326DQTR
ActiveSTMicroelectronics
ACCELEROMETER TRIPLE ±2G/±6G 3.3V AUTOMOTIVE AEC-Q100 28-PIN PQFP-N T/R
Deep-Dive with AI
Search across all available documentation for this part.
AIS326DQTR
ActiveSTMicroelectronics
ACCELEROMETER TRIPLE ±2G/±6G 3.3V AUTOMOTIVE AEC-Q100 28-PIN PQFP-N T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AIS326DQTR | AIS326 Series |
|---|---|---|
| - | - | |
| Acceleration Range [Max] | 6 g, 2 g | 2 - 6 g |
| Acceleration Range [Min] | -2 g | -2 g |
| Axis [x] | X | X |
| Axis [y] | Y | Y |
| Axis [z] | Z | Z |
| Bandwidth [Max] | 640 Hz | 640 Hz |
| Bandwidth [Min] | 10 Hz | 10 Hz |
| Features | Adjustable Bandwidth, Selectable Scale | Adjustable Bandwidth, Selectable Scale |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | I2C, SPI | I2C, SPI |
| Package / Case | 28-QFN Exposed Pad | 28-QFN Exposed Pad |
| Sensitivity (LSB/g) | 340 LSB/g, 1024 LSB/g | 340 - 1024 LSB/g |
| Supplier Device Package | 28-QFPN (7x7) | 28-QFPN (7x7) |
| Type | Digital | Digital |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
AIS326 Series
ACCELEROMETER TRIPLE ±2G/±6G 3.3V AUTOMOTIVE AEC-Q100 28-PIN PQFP-N T/R
| Part | Acceleration Range [Max] | Acceleration Range [Min] | Supplier Device Package | Mounting Type | Bandwidth [Min] | Bandwidth [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Sensitivity (LSB/g) | Package / Case | Features | Axis [z] | Axis [y] | Axis [x] | Type | Operating Temperature [Min] | Operating Temperature [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics AIS326DQTR | 2 g, 6 g | -2 g | 28-QFPN (7x7) | Surface Mount | 10 Hz | 640 Hz | 3.6 V | 3 V | 340 LSB/g, 1024 LSB/g | 28-QFN Exposed Pad | Adjustable Bandwidth, Selectable Scale | Z | Y | X | Digital | -40 °C | 105 ░C | I2C, SPI |
STMicroelectronics AIS326DQTR |
Description
General part information
AIS326 Series
Accelerometer X, Y, Z Axis ±2g, 6g 10Hz ~ 640Hz 28-QFPN (7x7)
Documents
Technical documentation and resources
No documents available
