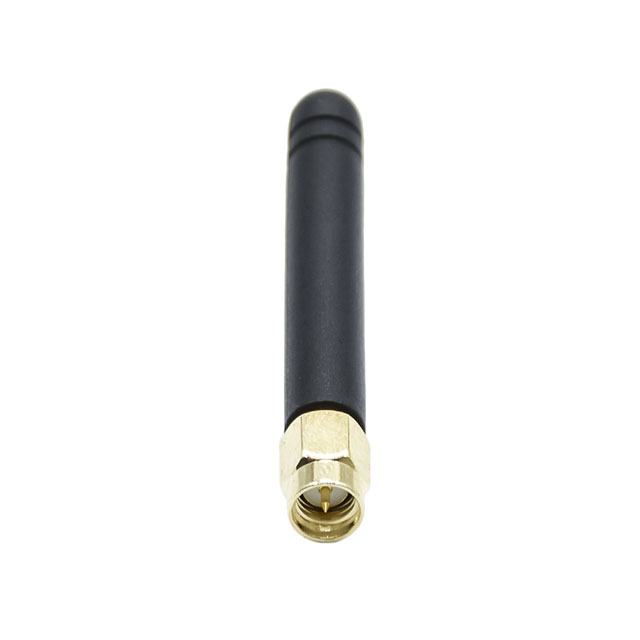

RST-MA13-49-1M-GE-001

Active

Raltron Electronics

RF ANT 850MHZ/868MHZ WHIP STR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RST-MA13-49-1M-GE-001

Active

Raltron Electronics

RF ANT 850MHZ/868MHZ WHIP STR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RST-MA13-49-1M-GE-001

Antenna Type	Whip, Straight
Applications	LoRa, GSM
Frequency (Center/Band)	2.1 GHz, 1.9 GHz, 900 MHz, 850 MHz, 1.8 GHz, 915 MHz, 868 MHz
Frequency Group	Wide Band
Frequency Range [Max]	960 MHz, 2.17 GHz
Frequency Range [Min]	1.71 GHz, 824 MHz
Gain	2 dBic
Height (Max) [Max]	49 mm
Height (Max) [Max]	1.929 "
Ingress Protection	IP67, IP66
Mounting Type	Connector Mount
Number of Bands	2
RF Family/Standard	Cellular
VSWR	2.5

RST-MA13 Series

RF ANT 850MHZ/868MHZ WHIP STR

Part	Antenna Type	Frequency Range [Min]	Frequency Range [Max]	VSWR	Applications	Frequency Group	Number of Bands	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Frequency (Center/Band)	Ingress Protection	Mounting Type	Gain
Raltron Electronics RST-MA13-49-1M-GE-001	Whip, Straight	1.71 GHz, 824 MHz	2.17 GHz, 960 MHz	2.5	GSM, LoRa	Wide Band	2	Cellular	49 mm	1.929 "	1.8 GHz, 1.9 GHz, 2.1 GHz, 850 MHz, 868 MHz, 900 MHz, 915 MHz	IP66, IP67	Connector Mount	2 dBic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.26
		50	$ 6.25
		100	$ 5.43
		1000	$ 4.12

Description

General part information

RST-MA13 Series

850MHz, 868MHz, 900MHz, 915MHz, 1.8GHz, 1.9GHz, 2.1GHz GSM, LORA Whip, Straight RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz 2dBi SMA Male Connector Mount
