MSLL12060-200

Active

Laird-Signal Integrity Products

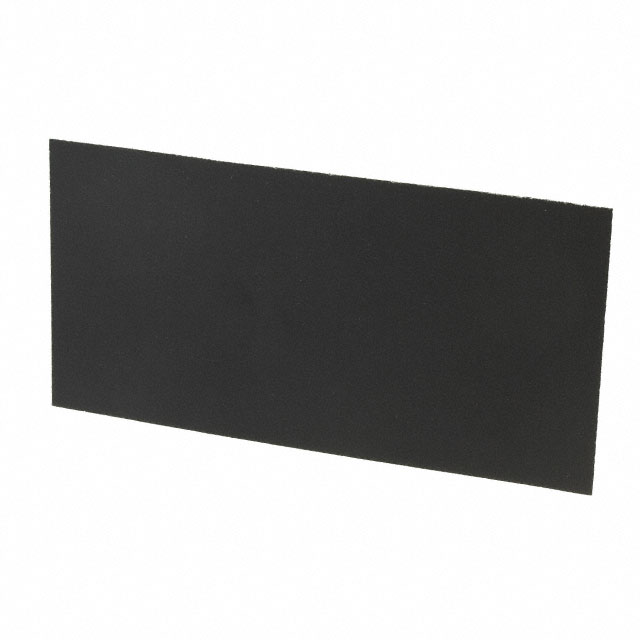

RF FERRITE SHEET 4.724"X2.362"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MSLL12060-200

Active

Laird-Signal Integrity Products

RF FERRITE SHEET 4.724"X2.362"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MSLL12060-200	MSLL12060 Series

Adhesive	Single Sided, Non-Conductive	Single Sided, Non-Conductive
Length	4.724 in	4.724 in
Length	120 mm	120 mm
Material	Rubber, PET Film, Ferrite Powder	Rubber, PET Film, Ferrite Powder
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shape	Rectangular	Rectangular
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Shipment	Date of Shipment
Thickness - Overall	0.2 mm	0.2 mm
Thickness - Overall	0.008 "	0.008 - 0.35 "
Thickness - Overall	-	0.014 in
Type	Flexible Ferrite Sheet	Flexible Ferrite Sheet
Width [x]	60 mm	60 mm
Width [x]	2.362 in	2.362 in

MSLL12060 Series

RF FERRITE SHEET 4.724"X2.362"

Part	Type	Thickness - Overall	Thickness - Overall	Material	Shape	Shelf Life Start	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Width [x]	Width [x]	Adhesive	Shelf Life	Thickness - Overall
Laird-Signal Integrity Products MSLL12060-200	Flexible Ferrite Sheet	0.2 mm	0.008 "	Ferrite Powder, PET Film, Rubber	Rectangular	Date of Shipment	4.724 in	120 mm	85 °C	-40 °C	60 mm	2.362 in	Non-Conductive, Single Sided	24 Months
Laird-Signal Integrity Products MSLL12060-000	Flexible Ferrite Sheet		0.35 mm	Ferrite Powder, PET Film, Rubber	Rectangular	Date of Shipment	4.724 in	120 mm	85 °C	-40 °C	60 mm	2.362 in	Non-Conductive, Single Sided	24 Months	0.014 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.82
		10	$ 6.61
		25	$ 5.56
		50	$ 4.83
		100	$ 4.53

Description

General part information

MSLL12060 Series

RF EMI Flexible Ferrite Sheet MSLL Rubber, Ferrite Powder, PET Film Non-Conductive, Single Sided 2.362" (60.00mm) X 4.724" (120.00mm) X 0.008" (0.20mm)
