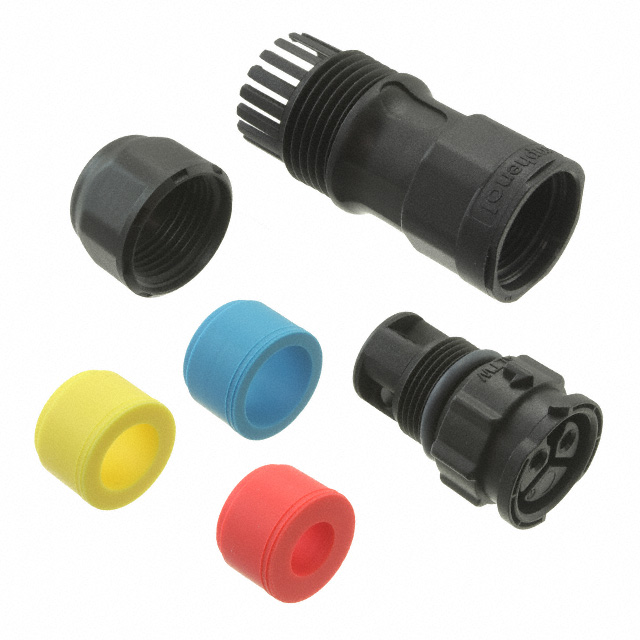

CC-02BMFB-QL8APP

Active

Amphenol LTW

CONN RCPT FMALE 2POS GOLD SCREW

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 2POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	CC-02BMFB-QL8APP

Cable Opening [custom]	0.472 in, 0.236 in
Cable Opening [custom]	12 mm
Cable Opening [custom]	6 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	C
Shielding	Unshielded
Termination	Screw
Voltage Rating	300 VAC

Part	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Material Flammability Rating	Insert Material	Voltage Rating	Mounting Type	Connector Type	Termination	Shielding	Shell Size - Insert	Fastening Type	Primary Material	Ingress Protection	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Orientation	Current Rating (Amps)	Contact Material	Number of Positions	Color
Amphenol LTW CC-02BMFB-QL8APP	0.236 in 0.472 in	12 mm	6 mm	UL94 V-0	Polyamide (PA) Nylon Glass Filled	300 VAC	Free Hanging (In-Line)	Receptacle Female Sockets	Screw	Unshielded	C	Push-Pull	Plastic	IP68 - Dust Tight Waterproof	Backshell	-40 °C	105 ░C	Gold	Keyed	20 A	Copper Alloy	2	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (Power) Position Circular Connector Receptacle, Female Sockets Screw
