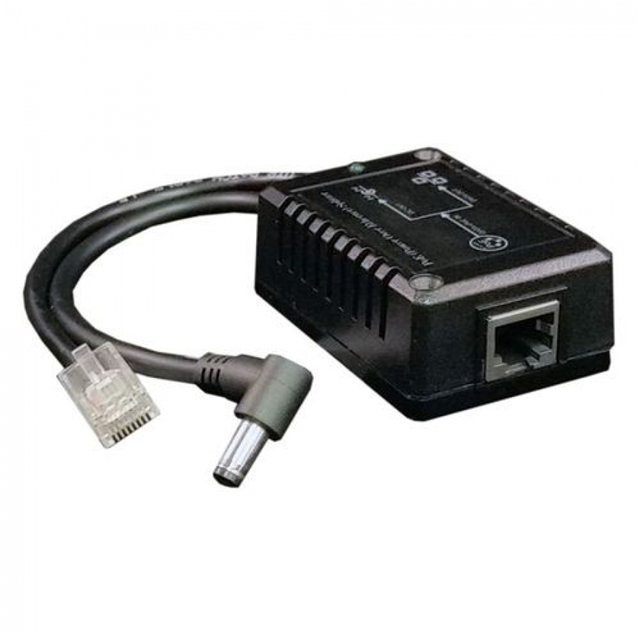

POE-MSPLT-4812

Obsolete

Tycon Systems Inc.

POE SPLITTER.48VDC 802.3AF POE I

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

POE SPLITTER.48VDC 802.3AF POE I

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	POE-MSPLT-4812	POE-MS Series

Approval Agency	-	FCC
Compliance	-	IEEE802.3at, IEEE802.3af
Current - Output	-	3 - 500 A
Data Rate	-	10 Mbps
Data Rate	-	100 Mbps
Efficiency	-	75 %
Features	-	OCP, SCP
For Use With/Related Products	Ethernet, RJ45	Ethernet, Ethernet, RJ45
Input Connector	-	RJ45 (Data, Power)
Mounting Type	-	Desktop
Note	-	AC Power Cord Included
Number of Ports	-	1
Operating Temperature	-	50 °C
Operating Temperature	-	-25 °C
Output Connector	-	USB (Power), RJ45 (Data, Power), 2.1 or 2.5mm Plug
Power (Watts) - Per Port	-	15 W
Size / Dimension	-	1.8 in
Size / Dimension	-	2.6 in
Size / Dimension	-	45.7 mm
Size / Dimension	-	1 "
Size / Dimension	-	66 mm
Size / Dimension	-	25.4 mm
Type	PoE Splitter	PoE (Power Over Ethernet), Splitter, PoE Splitter
Voltage - Output	-	5 - 24 V

802.3AF/AT TO USB CONVERTER. 48V

Part	Type	Note	Current - Output	Features	Power (Watts) - Per Port	Input Connector	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Output Connector	Voltage - Output	Compliance	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Data Rate [Min]	Data Rate [Max]	Efficiency	Number of Ports
Tycon Systems Inc. POE-MSPLT-USB	PoE (Power Over Ethernet), Splitter	AC Power Cord Included	3 A	OCP, SCP	15 W	RJ45 (Data, Power)	FCC	1.8 in	2.6 in	45.7 mm	1 "	66 mm	25.4 mm	USB (Power)	5 V	IEEE802.3af, IEEE802.3at	Ethernet	50 °C	-25 °C	Desktop	10 Mbps	100 Mbps	75 %	1
Tycon Systems Inc. POE-MSPLT-4812P	PoE Splitter																Ethernet, RJ45
Tycon Systems Inc. POE-MSPLT-4812P-F	PoE Splitter																Ethernet, RJ45
Tycon Systems Inc. POE-MSPLT-4805	PoE Splitter																Ethernet, RJ45
Tycon Systems Inc. POE-MSPLT-4809	PoE Splitter																Ethernet, RJ45
Tycon Systems Inc. POE-MSPLT-4824	PoE Splitter, Splitter	AC Power Cord Included	500 mA	OCP, SCP		RJ45 (Data, Power)	FCC	1.8 in	2.6 in	45.7 mm	1 "	66 mm	25.4 mm	2.1 or 2.5mm Plug, RJ45 (Data, Power)	24 V	IEEE802.3af, IEEE802.3at	Ethernet, RJ45	50 °C	-25 °C	Desktop	10 Mbps	100 Mbps	75 %	1
Tycon Systems Inc. POE-MSPLT-4812	PoE Splitter																Ethernet, RJ45

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

PoE Splitter Ethernet, RJ45

Technical documentation and resources

No documents available
