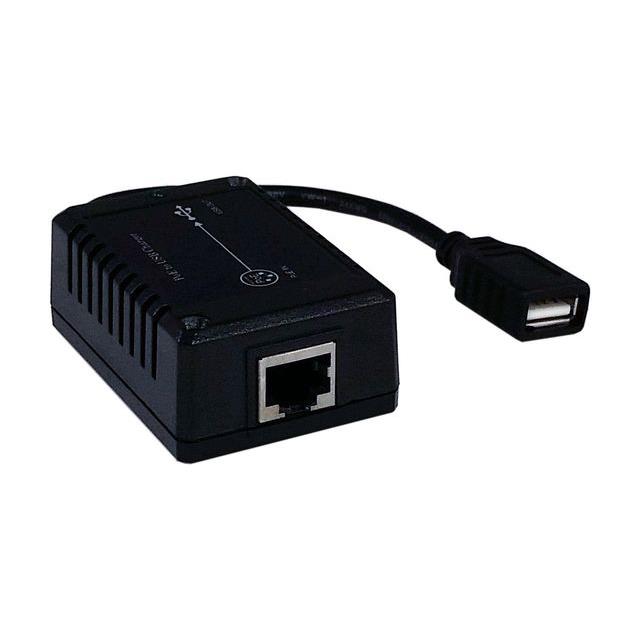

POE-MSPLT-USB

Active

Tycon Systems Inc.

802.3AF/AT TO USB CONVERTER. 48V

Search across all available documentation for this part.

Active

Tycon Systems Inc.

802.3AF/AT TO USB CONVERTER. 48V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PoE (Power Over Ethernet) Ethernet

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	POE-MSPLT-USB	POE-MS Series

Approval Agency	FCC	FCC
Compliance	IEEE802.3at, IEEE802.3af	IEEE802.3at, IEEE802.3af
Current - Output	3 A	3 - 500 A
Data Rate [Max]	100 Mbps	100 Mbps
Data Rate [Min]	10 Mbps	10 Mbps
Efficiency	75 %	75 %
Features	OCP, SCP	OCP, SCP
For Use With/Related Products	Ethernet	Ethernet, Ethernet, RJ45
Input Connector	RJ45 (Data, Power)	RJ45 (Data, Power)
Mounting Type	Desktop	Desktop
Note	AC Power Cord Included	AC Power Cord Included
Number of Ports	1	1
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	-25 °C	-25 °C
Output Connector	USB (Power)	USB (Power), RJ45 (Data, Power), 2.1 or 2.5mm Plug
Power (Watts) - Per Port	15 W	15 W
Size / Dimension [x]	2.6 in	2.6 in
Size / Dimension [x]	66 mm	66 mm
Size / Dimension [y]	1.8 in	1.8 in
Size / Dimension [y]	45.7 mm	45.7 mm
Size / Dimension [z]	1 "	1 "
Size / Dimension [z]	25.4 mm	25.4 mm
Type	PoE (Power Over Ethernet), Splitter	PoE (Power Over Ethernet), Splitter, PoE Splitter
Voltage - Output	5 V	5 - 24 V

802.3AF/AT TO USB CONVERTER. 48V

Part	Type	Note	Current - Output	Features	Power (Watts) - Per Port	Input Connector	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Output Connector	Voltage - Output	Compliance	For Use With/Related Products	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Data Rate [Min]	Data Rate [Max]	Efficiency	Number of Ports
Tycon Systems Inc. POE-MSPLT-USB	PoE (Power Over Ethernet), Splitter	AC Power Cord Included	3 A	OCP, SCP	15 W	RJ45 (Data, Power)	FCC	1.8 in	2.6 in	45.7 mm	1 "	66 mm	25.4 mm	USB (Power)	5 V	IEEE802.3af, IEEE802.3at	Ethernet	50 °C	-25 °C	Desktop	10 Mbps	100 Mbps	75 %	1
Tycon Systems Inc. POE-MSPLT-4812P	PoE Splitter																Ethernet, RJ45
Tycon Systems Inc. POE-MSPLT-4812P-F	PoE Splitter																Ethernet, RJ45
Tycon Systems Inc. POE-MSPLT-4805	PoE Splitter																Ethernet, RJ45
Tycon Systems Inc. POE-MSPLT-4809	PoE Splitter																Ethernet, RJ45
Tycon Systems Inc. POE-MSPLT-4824	PoE Splitter, Splitter	AC Power Cord Included	500 mA	OCP, SCP		RJ45 (Data, Power)	FCC	1.8 in	2.6 in	45.7 mm	1 "	66 mm	25.4 mm	2.1 or 2.5mm Plug, RJ45 (Data, Power)	24 V	IEEE802.3af, IEEE802.3at	Ethernet, RJ45	50 °C	-25 °C	Desktop	10 Mbps	100 Mbps	75 %	1
Tycon Systems Inc. POE-MSPLT-4812	PoE Splitter																Ethernet, RJ45
