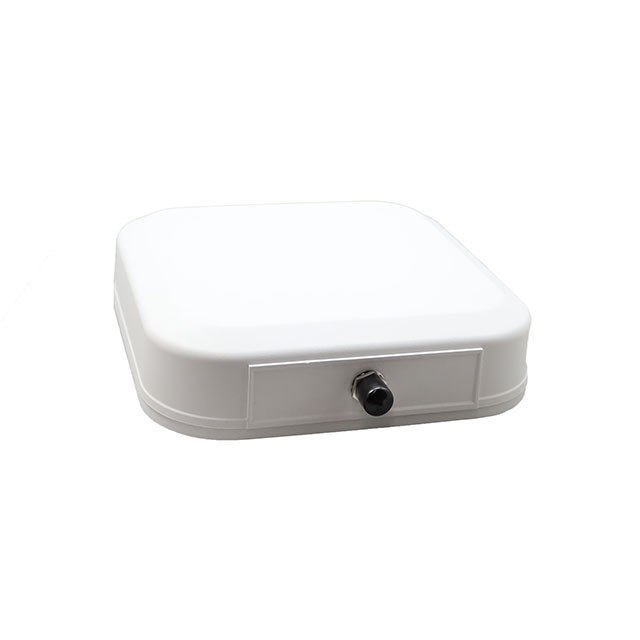

PAV69278PI-FNF

Obsolete

TE Connectivity Raychem Cable Protection

RF ANT 700MHZ/900MHZ PANEL N FEM

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

RF ANT 700MHZ/900MHZ PANEL N FEM

Technical Specifications

Parameters and characteristics for this part

Part	Frequency (Center/Band)	Frequency Group	Termination	Frequency Range [Max]	Frequency Range [Min]	VSWR	Power - Max [Max]	Gain	Antenna Type	RF Family/Standard	Mounting Type	Height (Max) [Max]	Height (Max)	Number of Bands	Applications	Ingress Protection	Features	Features
TE Connectivity Raychem Cable Protection PAV69278PI-FNF	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 900 MHz	Wide Band	N Type Female	2.7 GHz 960 MHz	1.71 GHz 698 MHz	2	50 W	8 dBi	Panel	Cellular	Chassis Mount	2.413 in	61.3 mm	2	AWS GSM LTE PCS UMTS
TE Connectivity Raychem Cable Protection PAV69278I-FNF	2.2 GHz 829 MHz	Wide Band	N Type Female	2.7 GHz 960 MHz	1.71 GHz 698 MHz	2	50 W	8 dBi	Panel	Cellular	Chassis Mount	2.413 in	61.3 mm	2	GSM LTE UMTS
TE Connectivity Raychem Cable Protection PAV69278O-30NF	1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 900 MHz	Wide Band	N Type Female	2.7 GHz 960 MHz	1.71 GHz 698 MHz	1.8	50 W	7.6 dBi 8.1 dB	Panel	Cellular	Bracket Mount	2.413 in	61.3 mm	2	AWS GSM LTE PCS UMTS	IP67	300 mm	Cable
TE Connectivity Raychem Cable Protection PAV69278PO-30NF	1.8 GHz 1.9 GHz 2.1 GHz 2.4 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	Wide Band	N Type Female	2.7 GHz 960 MHz	1.7 GHz 698 MHz	1.5 1.7 1.8 1.9	50 W	7.6 dBi 7.8 dB 8.7 dBi 8.8 dBi	Panel	Cellular	Bracket Mount	2.413 in	61.3 mm	8	AWS GSM LTE PCS UMTS	IP67	300 mm	Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA AWS, GSM, LTE, PCS, UMTS Panel N Type Female Chassis Mount
