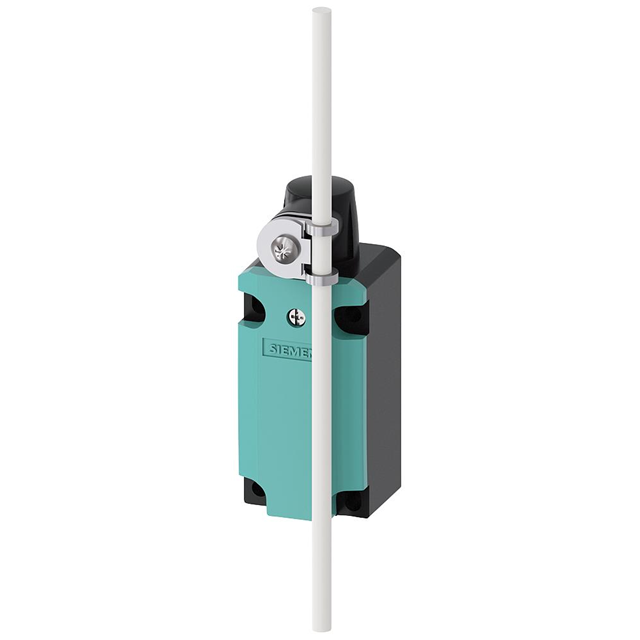

3SE51320CJ82

Active

Siemens

SWITCH LIMIT DPST 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

Documents3SE5 Position and Safety Switches Sales Guide 3SE5 Position and Safety Switches Brochure +2

3SE51320CJ82

Active

Siemens

SWITCH LIMIT DPST 6A 125V

Deep-Dive with AI

Documents3SE5 Position and Safety Switches Sales Guide 3SE5 Position and Safety Switches Brochure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3SE51320CJ82

Actuator Type	Side Rotary, Adjustable Rod
Circuit	DPST-NO/NC
Current Rating (Amps)	3 A, 6 A
Electrical Life	100000 Cycles
Ingress Protection	IP67, IP65
Mechanical Life	15000000 Cycles
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom, On-Mom
Termination Style	Screw Terminal
Voltage Rating - AC	125 V
Voltage Rating - DC	24 V

3SE5132 Series

Part	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Ingress Protection	Voltage Rating - AC	Switch Function	Actuator Type	Electrical Life	Mounting Type	Voltage Rating - DC	Mechanical Life	Operating Force
Siemens 3SE51320KJ01	3PST-2NC/1NO	-25 °C	85 °C	3 A 6 A	Screw Terminal	IP66/IP67	125 V	Off-Mom On-Mom	Roller Side Rotary	100000 Cycles	Chassis Mount	24 V	15000000 Cycles
Siemens 3SE51320LJ50	3PST-2NC/1NO	-25 °C	85 °C	3 A 6 A	Screw Terminal	IP66/IP67	125 V	Off-Mom On-Mom	Side Rotary Adjustable Roller	100000 Cycles	Chassis Mount	24 V	15000000 Cycles
Siemens 3SE51320PA001CA0	3PST-2NO/1NC	-25 °C	85 °C	3 A 6 A	Screw Terminal	IP66/IP67	125 V	Off-Mom On-Mom	Round (Pin Plunger)	100000 Cycles	Chassis Mount	24 V	15000000 Cycles	2039 gf
Siemens 3SE51320BB01	DPST-NO/NC	-25 °C	85 °C	3 A 6 A	Screw Terminal	IP66/IP67	125 V	Off-Mom On-Mom	Round (Pin Plunger)	100000 Cycles	Chassis Mount	24 V	15000000 Cycles	2039 gf
Siemens 3SE51320CJ82	DPST-NO/NC	-25 °C	85 °C	3 A 6 A	Screw Terminal	IP65 IP67	125 V	Off-Mom On-Mom	Side Rotary Adjustable Rod	100000 Cycles	Chassis Mount	24 V	15000000 Cycles
Siemens 3SE51320PJ01	3PST-2NO/1NC	-25 °C	85 °C	3 A 6 A	Screw Terminal	IP66/IP67	125 V	Off-Mom On-Mom	Roller Side Rotary	100000 Cycles	Chassis Mount	24 V	15000000 Cycles
Siemens 3SE51320CJ01	DPST-NO/NC			6 A 550 mA	Screw Terminal	IP66/IP67	125 V	Off-Mom On-Mom	Roller Side Rotary	100000 Cycles	Chassis Mount	125 VDC	15000000 Cycles
Siemens 3SE51320KA00	3PST-2NC/1NO	-25 °C	85 °C	3 A 6 A	Screw Terminal	IP66/IP67	125 V	Off-Mom On-Mom	Round (Pin Plunger)	100000 Cycles	Chassis Mount	24 V	15000000 Cycles	2039 gf
Siemens 3SE51320LC03	3PST-2NC/1NO	-25 °C	85 °C	3 A 6 A	Screw Terminal	IP66/IP67	125 V	Off-Mom On-Mom	Round (Pin Plunger)	100000 Cycles	Chassis Mount	24 V	15000000 Cycles	2039 gf
Siemens 3SE51320KC03	3PST-2NC/1NO	-25 °C	85 °C	3 A 6 A	Screw Terminal	IP66/IP67	125 V	Off-Mom On-Mom	Round (Pin Plunger)	100000 Cycles	Chassis Mount	24 V	15000000 Cycles	2039 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 168.73
