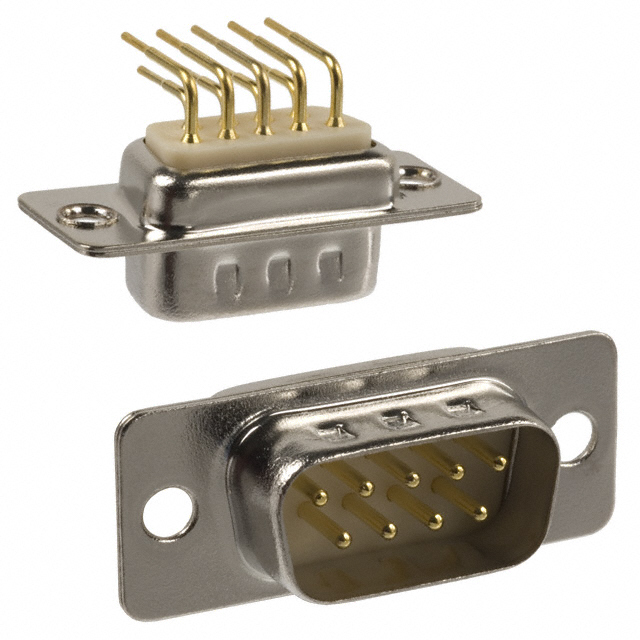

174-E09-113R001
ActiveMH Connectors
D SUB CONNECTOR, DB9, STANDARD, PLUG, 174-E M SERIES, 9 CONTACTS, DE, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
174-E09-113R001
ActiveMH Connectors
D SUB CONNECTOR, DB9, STANDARD, PLUG, 174-E M SERIES, 9 CONTACTS, DE, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 174-E09-113R001 |
|---|---|
| Backset Spacing | 9.4 mm |
| Backset Spacing | 0.37 in |
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
174-E09 Series
9 Position D-Sub Plug, Male Pins Connector
