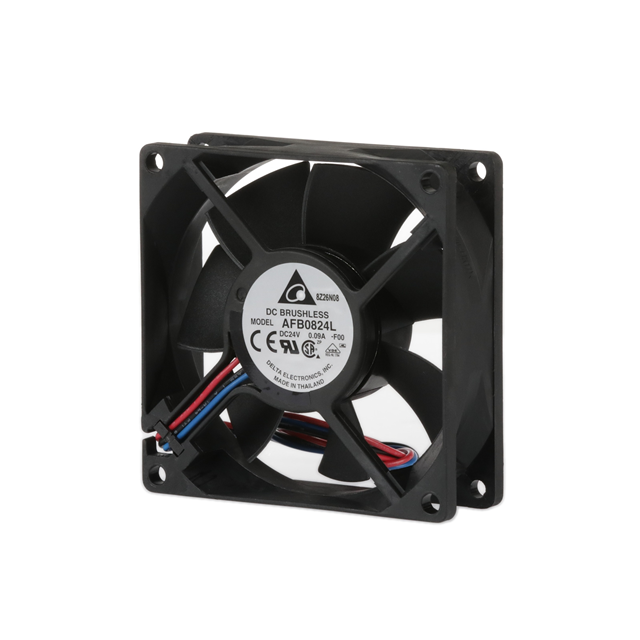

AFB0824L-F00

Obsolete

Delta Electronics

FAN AXIAL 80X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AFB0824L-F00

Obsolete

Delta Electronics

FAN AXIAL 80X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0824L-F00

Air Flow	27.9 CFM
Air Flow	0.781 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	50 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	25 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.2 W
RPM	2400 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	0.102 in H2O
Static Pressure	25.5 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	14 VDC
Weight	80 g
Weight	0.176 lb
Width [y]	25.4 mm

AFB0824 Series

Part	Voltage - Rated	Static Pressure	Static Pressure	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]	Lifetime @ Temp.	Weight	Weight	Material - Frame	Width [y]	Bearing Type	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	RPM	Fan Type	Approval Agency	Air Flow	Air Flow	Current Rating (Amps)	Noise	Termination	Features	Ingress Protection	Width [x]
Delta Electronics AFB0824L-F00	24 VDC	0.102 in H2O	25.5 Pa	1.2 W	27.6 VDC	14 VDC	70000 Hrs	80 g	0.176 lb	Plastic	25.4 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	2400 RPM	Tubeaxial	CE CSA UL VDE	27.9 CFM	0.781 m³/min	50 mA	25 dB(A)	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0824M	24 VDC	0.129 in H2O	32.1 Pa	1.44 W	27.6 VDC	14 VDC	70000 Hrs	80 g	0.176 lb	Plastic	25.4 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	2700 RPM	Tubeaxial	CE CSA UL VDE	31.4 CFM	0.879 m³/min	60 mA	28 dB	2 Wire Leads
Delta Electronics AFB0824SH-F00	24 VDC	0.267 in H2O	66.5 Pa	3.84 W	26 VDC	14 VDC	70000 Hrs	80 g	0.176 lb	Plastic	25.4 mm	Ball	Plastic	60 °C	60 °C	-10 °C	-10 °C	80 mm	80 mm	4000 RPM	Tubeaxial	CE CSA UL VDE	46.6 CFM	1.3 m³/min		40 dB(A)	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0824GHE	24 VDC	1.006 in H2O	250.6 Pa	15.6 W	26.4 VDC	14 VDC	70000 Hrs	156.04 g	0.344 lb	Plastic	38 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	6800 RPM	Tubeaxial	CE CSA UL VDE			650 mA	54 dB	2 Wire Leads
Delta Electronics AFB0824HH-T500	24 VDC	0.181 in H2O	45.1 Pa	2.16 W	27.6 VDC	14 VDC	70000 Hrs	80 g	0.176 lb	Plastic	25.4 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	3250 RPM	Tubeaxial	CE CSA UL VDE	37.4 CFM	1.05 m³/min	0.09 A	34 dB(A)	2 Wire Leads		IP55 - Dust Protected Water Resistant
Delta Electronics AFB0824GHE-R00	24 VDC	1.006 in H2O	250.6 Pa	15.6 W	26.4 VDC	14 VDC	70000 Hrs	156.04 g	0.344 lb	Plastic	38 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	6800 RPM	Tubeaxial	CE CSA UL VDE			650 mA	54 dB	3 Wire Leads	Locked Rotor Sensor
Delta Electronics AFB0824VH-R00	24 VDC	0.217 in H2O	54.1 Pa	3.36 W	27.6 VDC	14 VDC	70000 Hrs	80 g	0.176 lb	Plastic	25.4 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	3600 RPM	Tubeaxial	CE CSA UL VDE	42 CFM	1.18 m³/min	140 mA	38 dB(A)	3 Wire Leads	Locked Rotor Sensor
Delta Electronics AFB0824LB	24 VDC	0.087 in H2O	21.7 Pa	1.2 W	27.6 VDC	14 VDC	70000 Hrs	58.06 g	0.128 lb	Plastic		Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	2400 RPM	Tubeaxial	CE CSA UL VDE	24.7 CFM	0.692 mł/min	50 mA	27.5 dB(A)	2 Wire Leads			15 mm
Delta Electronics AFB0824HH	24 VDC	0.181 in H2O	45.1 Pa	2.16 W	27.6 VDC	14 VDC	70000 Hrs	80 g	0.176 lb	Plastic	25.4 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	3250 RPM	Tubeaxial	CE CSA UL VDE	37.4 CFM	1.05 m³/min	0.09 A	34 dB(A)	2 Wire Leads
Delta Electronics AFB0824H-F00	24 VDC	0.159 in H2O	39.6 Pa	1.68 W	27.6 VDC	14 VDC	70000 Hrs	80 g	0.176 lb	Plastic	25.4 mm	Ball	Plastic	70 °C	70 °C	-10 °C	-10 °C	80 mm	80 mm	3000 RPM	Tubeaxial	CE CSA UL VDE	35.3 CFM	0.988 mł/min	70 mA	31 dB(A)	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AFB0824 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 27.9 CFM (0.781m³/min) 3 Wire Leads
