Q-26032000M.75M

Active

Amphenol Custom Cable

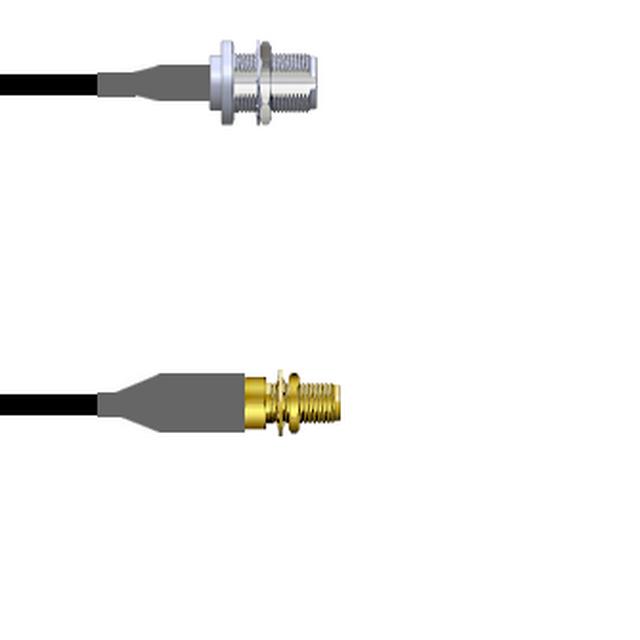

COAX CBL SMA TO N-TYPE 29.5"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 29.5"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-26032000M.75M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to N-Type

Part	Length	Length	Cable Type	Style	Overall Impedance	Color	2nd Connector Mounting Feature	2nd Contact Gender	Features	Frequency - Max [Max]	1st Connector Mounting Type	1st Connector Mounting Feature	1st Connector	2nd Connector	2nd Connector Mounting Type	1st Contact Gender	Length
Amphenol Custom Cable Q-26032000M.75M	29.53 "	750 mm	LMR 240	SMA to N-Type	50 Ohms	Black	Bulkhead - Front Side Nut	Female	Shielded	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	SMA Jack	N-Type Jack	Panel Mount	Female
Amphenol Custom Cable Q-26032000M036i	36 in	91.44 cm	LMR 240	SMA to N-Type	50 Ohms	Black	Bulkhead - Front Side Nut	Female	Shielded	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	SMA Jack	N-Type Jack	Panel Mount	Female
Amphenol Custom Cable Q-26032000M001M	39.4 in	1 m	LMR 240	SMA to N-Type	50 Ohms	Black	Bulkhead - Front Side Nut	Female	Shielded	6000 MHz	Panel Mount	Bulkhead - Front Side Nut	SMA Jack	N-Type Jack	Panel Mount	Female	3.3 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type LMR 240 29.53" (750.00mm)

Technical documentation and resources

No documents available
