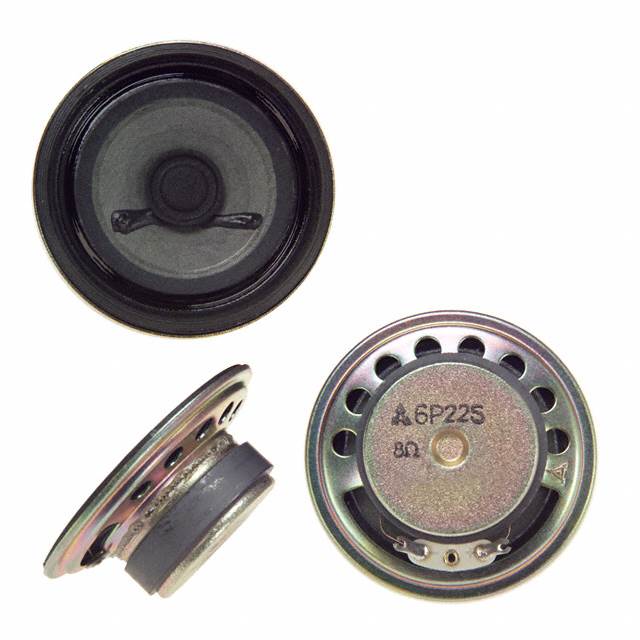

EAS-6P22S
ObsoletePanasonic Industrial Automation Sales
SPEAKER 8OHM 500MW 92DB ROUND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAS-6P22S
ObsoletePanasonic Industrial Automation Sales
SPEAKER 8OHM 500MW 92DB ROUND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAS-6P22S |
|---|---|
| Efficiency - dBA | 92 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Height - Seated (Max) [Max] | 0.807 " |
| Height - Seated (Max) [Max] | 20.5 mm |
| Impedance | 8 Ohms |
| Power - Rated | 500 mW |
| Shape | Round |
| Size / Dimension [diameter] | 2.244 in |
| Size / Dimension [diameter] | 57 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Full Range |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EAS-6 Series
8 Ohms Full Range Speaker 500 mW Round
