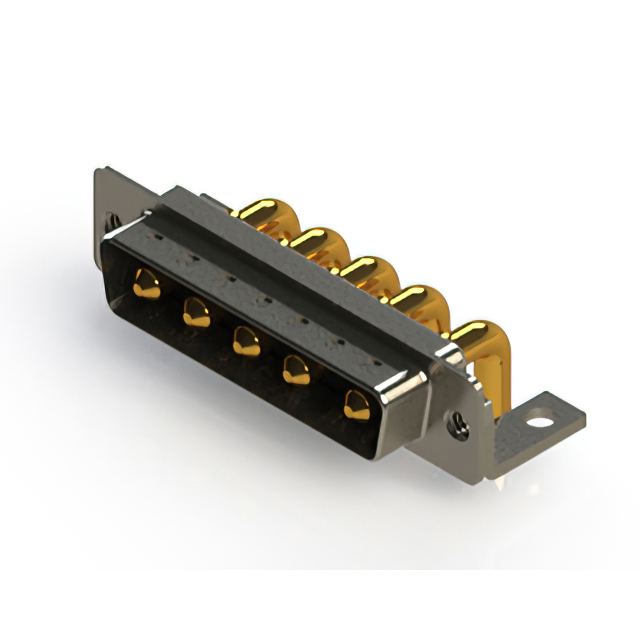

629-5W5-640-4NC

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DB-5W5, PLUG, 5 CONTACTS, 5 POWER, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

629-5W5-640-4NC

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DB-5W5, PLUG, 5 CONTACTS, 5 POWER, SOLDER

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-5W5-640-4NC

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	40 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	5
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5W5
Shell Size, Connector Layout	3
Termination	Solder
Voltage Rating	125 VDC

629-5W5 Series

...

Part	Voltage Rating	Number of Positions [custom]	Shell Material, Finish	Number of Rows	Mounting Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Material Flammability Rating	Contact Finish	Termination	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Connector Style	Contact Material	Dielectric Material	Backset Spacing	Backset Spacing	Flange Feature	Contact Finish Thickness
EDAC Inc. 629-5W5-640-4NC	125 VDC	5	Nickel Plated Steel	1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	40 A	5W5	3	Grounding Indents Mounting Brackets	0.76 Ám	30 Áin	Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	Housing/Shell (M3)
EDAC Inc. 629-5W5-240-3N4	125 VDC	5	Nickel Plated Steel	1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	30 A	5W5	3	Grounding Indents Mounting Brackets			Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	Housing/Shell (4-40)	Flash
EDAC Inc. 629-5W5-650-1TE	125 VDC	5		1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	10 A	5W5	3	Grounding Indents Mounting Brackets	0.76 Ám	30 Áin	Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	M3
EDAC Inc. 629-5W5-240-4TA	125 VDC	5		1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	40 A	5W5	3	Grounding Indents			Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	Board Side (M3)	Flash
EDAC Inc. 629-5W5-240-3N5	125 VDC	5	Nickel Plated Steel	1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	30 A	5W5	3	Board Lock Grounding Indents Mounting Brackets			Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	4-40	Flash
EDAC Inc. 629-5W5-650-2N3	125 VDC	5	Nickel Plated Steel	1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	20 A	5W5	3	Board Lock Grounding Indents Mounting Brackets	0.76 Ám	30 Áin	Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	Housing/Shell (4-40)
EDAC Inc. 629-5W5-650-4TA	125 VDC	5		1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	40 A	5W5	3	Grounding Indents	0.76 Ám	30 Áin	Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	Board Side (M3)
EDAC Inc. 629-5W5-650-2NE	125 VDC	5	Nickel Plated Steel	1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	20 A	5W5	3	Grounding Indents Mounting Brackets	0.76 Ám	30 Áin	Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	M3
EDAC Inc. 629-5W5-640-1TC	125 VDC	5		1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	10 A	5W5	3	Grounding Indents Mounting Brackets	0.76 Ám	30 Áin	Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	Housing/Shell (M3)
EDAC Inc. 629-5W5-650-3N6	125 VDC	5	Nickel Plated Steel	1	Through Hole Right Angle	Male Pins Plug	-55 °C	125 °C	Black	UL94 V-0	Gold	Solder	30 A	5W5	3	Board Lock Grounding Indents	0.76 Ám	30 Áin	Power	Combo D-Sub	Copper Alloy	Polyester Thermoplastic	13.2 mm	0.52 "	4-40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	250	$ 20.45
Newark	Each	1	$ 26.86
		500	$ 24.63
		1000	$ 22.74
		2500	$ 21.90
		5000	$ 19.35

Description

General part information

629-5W5 Series

5 (Power) Position D-Sub, Combo Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet
