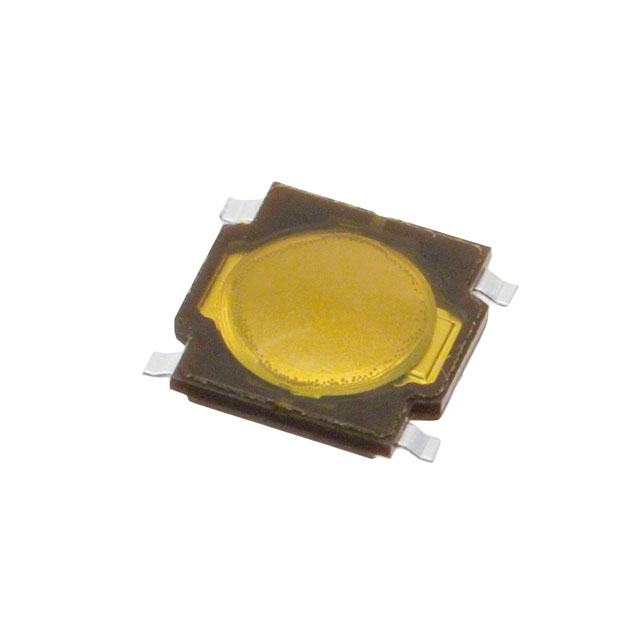

TL3315NF100Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 15V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 15V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3315NF100Q

Actuator Height off PCB, Vertical [z]	0.55 mm
Actuator Orientation	Top Actuated
Actuator Type	Snap Dome
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 15 VDC
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	4.5 mm
Outline [y]	4.5 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

Part	Contact Rating @ Voltage	Actuator Orientation	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]	Switch Travel	Illumination	Switch Function	Operating Force	Circuit	Outline [x]	Outline [y]	Mounting Type	Actuator Height off PCB, Vertical [z]	Termination Style	Actuator Type
E-Switch TL3315NF100Q	0.05 A 15 VDC	Top Actuated	1000000 Cycles	-20 C	70 °C	0.2 mm	Non-Illuminated	Off-Mom	100 gf	SPST-NO	4.5 mm	4.5 mm	Surface Mount	0.55 mm	Gull Wing	Snap Dome

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
