A98000-009
ActiveOmnetics

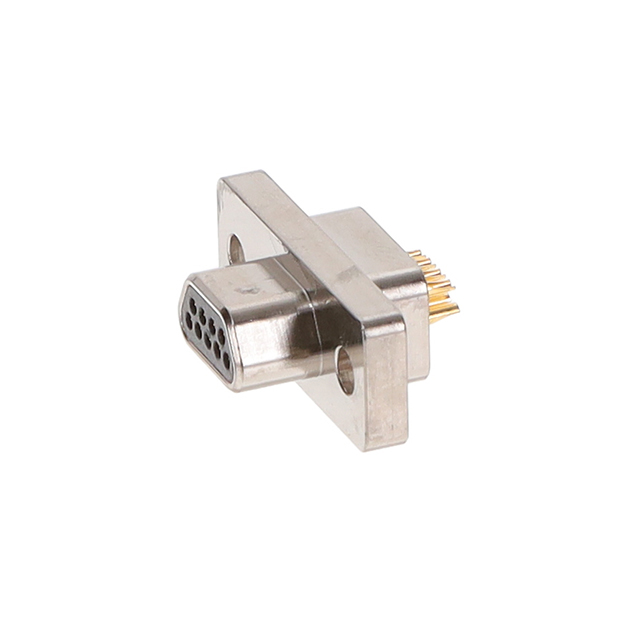

CONN MICRO-D PLUG 9POS SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A98000-009
ActiveOmnetics
CONN MICRO-D PLUG 9POS SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A98000-009 | MMDP-009 Series |
|---|---|---|
| 1st Connector | - | Plug, Male Pins |
| 2nd Connector | - | Individual Wire Leads |
| Color | - | Multiple, Individual |
| Connector Style | Micro-D, D-Type | Micro-D, D-Type |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 50 µin | 50 µin |
| Contact Finish Thickness | 1.27 µm | 1.27 µm |
| Contact Form | Stamped | Stamped |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 3 A | 3 A |
| Dielectric Material | Thermoplastic | Thermoplastic |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Length | - | 457.2 mm |
| Length | - | 1.5 ft |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 9 | 9 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | Aluminum, Nickel Plated, Electroless |
| Shell Size, Connector Layout [custom] | 0.05 | 0.05 |
| Shell Size, Connector Layout [custom] | 0.05 | 0.05 |
| Shielding | - | Unshielded |
| Type | - | D-Type, Micro-D |
MMDP-009 Series
CABLE ASSY MICRO-D 9POS 1.5'
| Part | Contact Finish Thickness | Contact Finish Thickness | Shielding | Number of Positions | Contact Finish | Length [x] | Length [x] | Color | 1st Connector | 2nd Connector | Type | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Dielectric Material | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Mounting Type | Current Rating (Amps) | Connector Type | Number of Rows | Contact Material | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omnetics A98100-009 | 50 µin | 1.27 µm | Unshielded | 9 | Gold | 457.2 mm | 1.5 ft | Individual, Multiple | Plug, Male Pins | Individual Wire Leads | D-Type, Micro-D | |||||||||||||||
Omnetics A98000-009 | 50 µin | 1.27 µm | 9 | Gold | Housing/Shell (Unthreaded) | 0.05 | 0.05 | Signal | Thermoplastic | Stamped | -55 °C | 125 °C | D-Type, Micro-D | Free Hanging (In-Line) | 3 A | Male Pins, Plug | 2 | Copper Alloy | Aluminum, Electroless, Nickel Plated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 171.00 | |
| 10 | $ 156.91 | |||
| 25 | $ 150.88 | |||
| 50 | $ 145.85 | |||
Description
General part information
MMDP-009 Series
9 Position D-Type, Micro-D Plug, Male Pins Connector
