A98100-009

Active

Omnetics

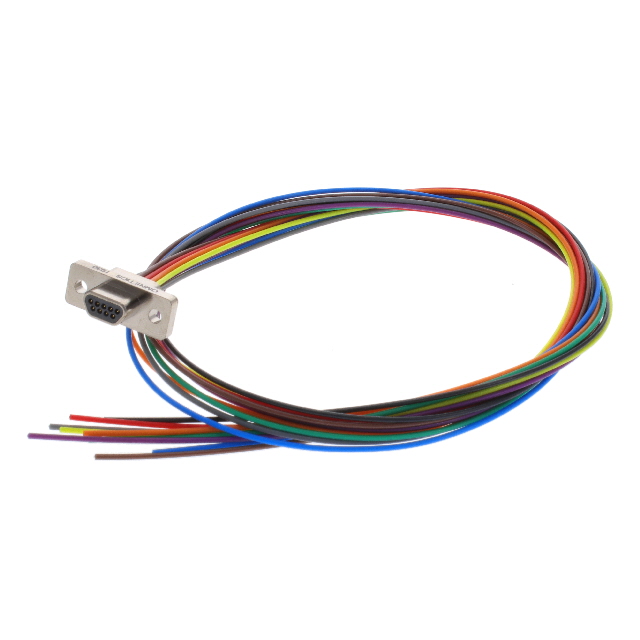

CABLE ASSY MICRO-D 9POS 1.5'

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY MICRO-D 9POS 1.5'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A98100-009	MMDP-009 Series

1st Connector	Plug, Male Pins	Plug, Male Pins
2nd Connector	Individual Wire Leads	Individual Wire Leads
Color	Multiple, Individual	Multiple, Individual
Connector Style	-	Micro-D, D-Type
Connector Type	-	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	-	Stamped
Contact Material	-	Copper Alloy
Contact Type	-	Signal
Current Rating (Amps)	-	3 A
Dielectric Material	-	Thermoplastic
Flange Feature	-	Housing/Shell (Unthreaded)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	9	9
Number of Rows	-	2
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Shell Material, Finish	-	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout	-	0.05
Shell Size, Connector Layout	-	0.05
Shielding	Unshielded	Unshielded
Type	D-Type, Micro-D	D-Type, Micro-D

CABLE ASSY MICRO-D 9POS 1.5'

Part	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Positions	Contact Finish	Length [x]	Length [x]	Color	1st Connector	2nd Connector	Type	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Dielectric Material	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Mounting Type	Current Rating (Amps)	Connector Type	Number of Rows	Contact Material	Shell Material, Finish
Omnetics A98100-009	50 µin	1.27 µm	Unshielded	9	Gold	457.2 mm	1.5 ft	Individual, Multiple	Plug, Male Pins	Individual Wire Leads	D-Type, Micro-D
Omnetics A98000-009	50 µin	1.27 µm		9	Gold							Housing/Shell (Unthreaded)	0.05	0.05	Signal	Thermoplastic	Stamped	-55 °C	125 °C	D-Type, Micro-D	Free Hanging (In-Line)	3 A	Male Pins, Plug	2	Copper Alloy	Aluminum, Electroless, Nickel Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded
