1424546

Active

Phoenix Contact

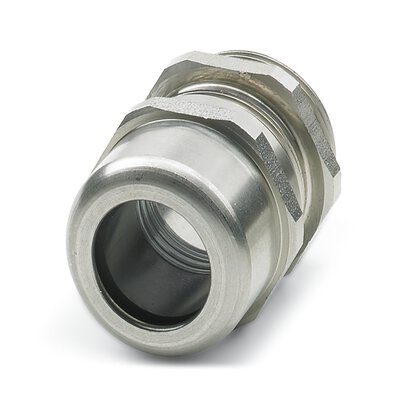

CABLE GLAND 19-28MM M40 S STEEL

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 19-28MM M40 S STEEL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M40x1.5 Silver

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1424546	G-INS-M40 Series

Color	Silver	Gray, Silver, Black
Includes	O-Ring, Seal	Seal, O-Ring
Ingress Protection	IP69, IP66, IP68	IP66/IP68, IP66, IP68, IP69
Material	Stainless Steel	Polyamide (PA), Nylon, Brass, Nickel Plated, Stainless Steel
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Outside Cable Diameter (Max)	-	32 mm
Outside Cable Diameter (Max)	-	1.26 in
Outside Cable Diameter (Max)	-	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	28 mm	28 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.102 in	0.984 - 1.102 in
Outside Cable Diameter (Min) [Min] [diameter]	19 mm	18.01 - 22 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.748 in	0.709 - 0.866 in
Thread Length	0.354 in	0.354 - 0.709 in
Thread Length	9 mm	9 - 18.01 mm
Thread Size	M40x1.5	M40x1.5
Type	Cable Gland	Cable Gland

CABLE GLAND 22-32MM M40 POLYAMID

Part	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Thread Size	Ingress Protection	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]
Phoenix Contact 1424474	100 °C	-40 °C	Seal	M40x1.5	IP66/IP68	Gray	32 mm	1.26 in	Polyamide (PA), Nylon	22 mm	0.866 in	0.709 in	18.01 mm	Cable Gland
Phoenix Contact 1424479	100 °C	-40 °C	Seal	M40x1.5	IP66/IP68	Gray	32 mm	1.26 in	Polyamide (PA), Nylon	22 mm	0.866 in	0.709 in	18.01 mm	Cable Gland
Phoenix Contact 1424529	100 °C	-40 °C	O-Ring, Seal	M40x1.5	IP66, IP68, IP69	Silver			Brass, Nickel Plated	18.01 mm	0.709 in	0.354 in	9 mm	Cable Gland	0.984 in	25 mm
Phoenix Contact 1424546	100 °C	-40 °C	O-Ring, Seal	M40x1.5	IP66, IP68, IP69	Silver			Stainless Steel	19 mm	0.748 in	0.354 in	9 mm	Cable Gland	1.102 in		28 mm
Phoenix Contact 1424484	100 °C	-20 C	Seal	M40x1.5	IP66/IP68	Black	32 mm	1.26 in	Polyamide (PA), Nylon	22 mm	0.866 in	0.709 in	18.01 mm	Cable Gland
Phoenix Contact 1411128	100 °C	-40 °C	Seal		IP66/IP68	Gray			Polyamide (PA), Nylon	19 mm	0.748 in	0.394 in	10 mm	Cable Gland	1.102 in		28 mm
