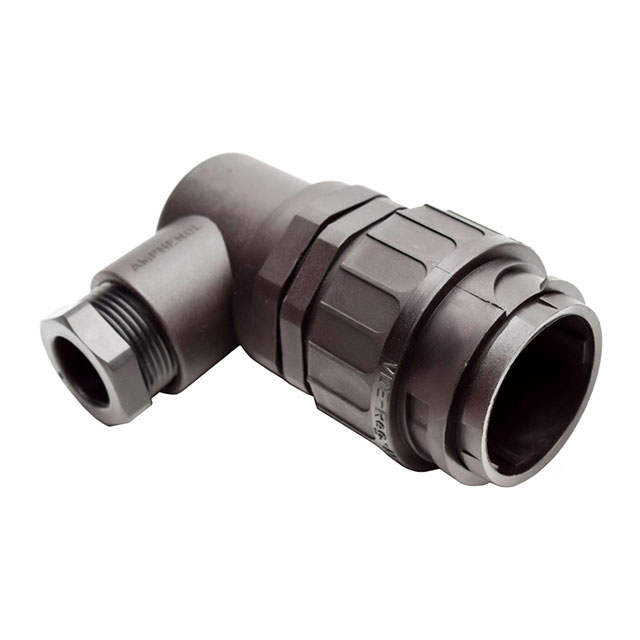

C01610K0190042

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 20POS R/A

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG MALE 20POS R/A

Technical Specifications

Parameters and characteristics for this part

Specification	C01610K0190042

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Number of Positions [custom]	PE
Number of Positions [custom]	20, 19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2
Shielding	Unshielded
Type	For Male Pins

Part	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert	Mounting Type	Orientation	Features	Shell Material	Type	Contact Size	Note	Contact Shape	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Ingress Protection	Fastening Type	Housing Color	Shielding	Contact Type
Amphenol Tuchel Industrial C01610K0190042	PE	19 20	2	Free Hanging (In-Line) Right Angle	N	Backshell Coupling Nut	Polyamide (PA66) Nylon 6/6	For Male Pins	1.5 mm	Contacts Not Included	Circular	UL94 V-0	125 °C	-40 °C	Plug Housing	IP65 - Dust Tight Water Resistant	Bayonet Lock	Black	Unshielded	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 28.09

General part information

20 (19 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Backshell, Coupling Nut
