T2020012005-000

Active

TE Connectivity Raychem Cable Protection

DDF-0.5

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHEAVY DUTY CONNECTORS

T2020012005-000

Active

TE Connectivity Raychem Cable Protection

DDF-0.5

Deep-Dive with AI

DocumentsHEAVY DUTY CONNECTORS

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T2020012005-000

Contact Finish	Gold
Contact Finish Thickness	0.75 µm
Contact Finish Thickness	29.5 µin
Contact Termination	Crimp
Pin or Socket	Socket
Wire Gauge	20 AWG

HDC HDD Series

Part	Contact Termination	Contact Finish	Pin or Socket	Wire Gauge	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Housing Material	Material Flammability Rating	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Type	Gender	Size	Current Rating (Amps)	Number of Positions	Connector Type	Color	Wire Gauge [Min]	Wire Gauge [Max]
TE Connectivity Raychem Cable Protection T2020011025-000	Crimp	Gold	Pin	13.5 AWG	0.75 µm	29.5 µin
TE Connectivity Raychem Cable Protection T2020012008-000	Crimp	Gold	Socket	18 AWG	0.75 µm	29.5 µin
TE Connectivity Raychem Cable Protection T2020082101-001							8	Polybutylene Terephthalate (PBT)	UL94 V-0	Crimp	125 °C	-40 °C	50 V	CDM DDM	Male	H3A	10 A
TE Connectivity Raychem Cable Protection T2020072101-000								Polybutylene Terephthalate (PBT)	UL94 V-0	Crimp			250 VDC	CDM DDM	Male	H3A	10 A	7+Ground	Insert without Contacts
TE Connectivity Raychem Cable Protection T2020802201-000								Polycarbonate (PC)	UL94 V-0	Crimp			250 VDC	CDF DDF	Female	H16B	10 A	40+Ground	Insert without Contacts
TE Connectivity Raychem Cable Protection T2020012005-000	Crimp	Gold	Socket	20 AWG	0.75 µm	29.5 µin
TE Connectivity Raychem Cable Protection T2020252201-000							25	Polycarbonate (PC)	UL94 V-0	Crimp	125 °C	-40 °C	250 VDC	CD DD	Female	H16A	10 A	Ground	Insert without Contacts	Gray
TE Connectivity Raychem Cable Protection T2020011015-000	Crimp	Gold	Pin	16 AWG	0.75 µm	29.5 µin
TE Connectivity Raychem Cable Protection T2020002015-000	Crimp	Silver	Socket	16 AWG
TE Connectivity Raychem Cable Protection T2020012002-000	Crimp	Gold	Socket		0.75 µm	29.5 µin															22 AWG	26 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.72
		10	$ 1.53
		25	$ 1.52
		50	$ 1.51
		100	$ 1.38
		300	$ 1.38
		500	$ 1.37

Description

General part information

HDC HDD Series

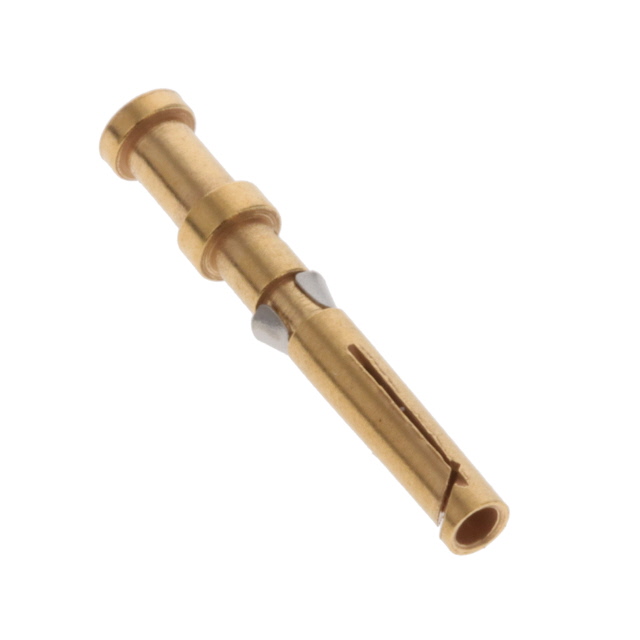

Contact Crimp Socket 20 AWG Gold

Documents

Technical documentation and resources

HEAVY DUTY CONNECTORS

Datasheet
