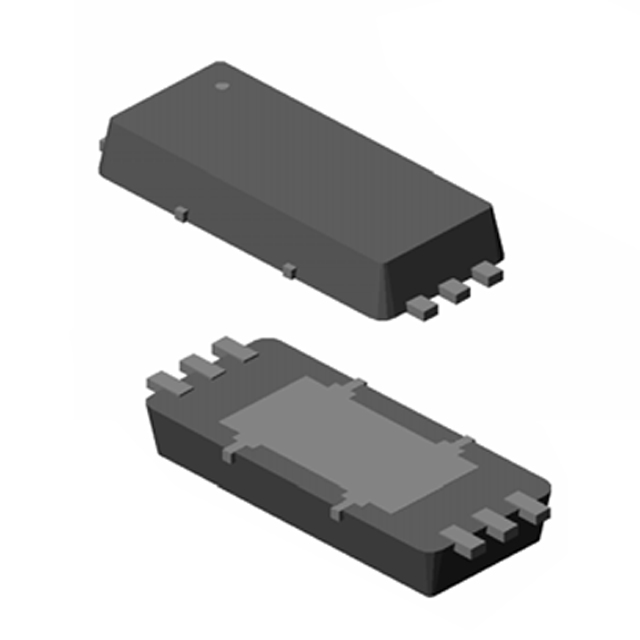

AON5802BL

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 30V 7.2A 6DFN

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 30V 7.2A 6DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AON5802BL

Configuration	2 N-Channel (Dual) Common Drain
Current - Continuous Drain (Id) @ 25°C	7.2 A
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	24 nC
Input Capacitance (Ciss) (Max) @ Vds	1150 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-WFDFN Exposed Pad
Power - Max [Max]	1.6 W
Rds On (Max) @ Id, Vgs	19 mOhm
Supplier Device Package	6-DFN-EP (2x5)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.5 V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Drain to Source Voltage (Vdss)	Technology	Configuration	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Power - Max [Max]	Supplier Device Package
Alpha & Omega Semiconductor Inc. AON5802BL	Surface Mount	-55 °C	150 °C	30 V	MOSFET (Metal Oxide)	2 N-Channel (Dual) Common Drain	1.5 V	24 nC	1150 pF	6-WFDFN Exposed Pad	7.2 A	19 mOhm	1.6 W	6-DFN-EP (2x5)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 30V 7.2A (Tc) 1.6W Surface Mount 6-DFN-EP (2x5)
