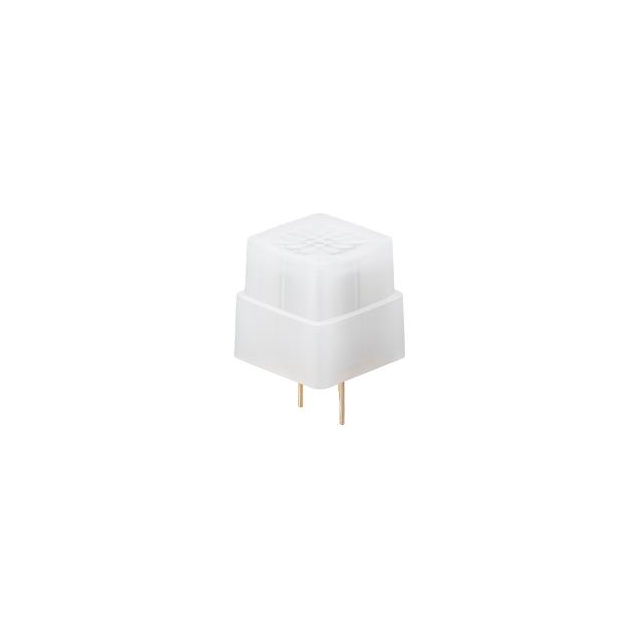

EKMC7610111K

Active

Panasonic Electric Works

SENSOR PIR 170UA DIGITAL WHITE

Search across all available documentation for this part.

Active

Panasonic Electric Works

SENSOR PIR 170UA DIGITAL WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	EKMC7610111K

Features	White, Flat Square Lens
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Package / Case	Module
Sensing Distance	197 in
Sensing Distance	5 m
Sensing Distance	16.4 ft
Sensor Type	Pyroelectric, PIR (Passive Infrared), Motion
Trigger Type	Internal
Voltage - Supply [Max]	6 V
Voltage - Supply [Min]	3 V

Part	Sensing Distance	Sensing Distance	Sensing Distance	Sensor Type	Package / Case	Trigger Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
Panasonic Electric Works EKMC7610111K	197 in	5 m	16.4 ft	Motion PIR (Passive Infrared) Pyroelectric	Module	Internal	Flat Square Lens White	-20 C	60 °C	6 V	3 V
Panasonic Electric Works EKMC7610112K	197 in	5 m	16.4 ft	Motion PIR (Passive Infrared) Pyroelectric	Module	Internal	Black Flat Square Lens	-20 C	60 °C	6 V	3 V
Panasonic Electric Works EKMC7610113K	197 in	5 m	16.4 ft	Motion PIR (Passive Infrared) Pyroelectric	Module	Internal	Flat Square Lens Pearl White	-20 C	60 °C	6 V	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sensor Motion, Pyroelectric, PIR (Passive Infrared) 197" (5m) 16.4' Flat Square Lens, White Module
