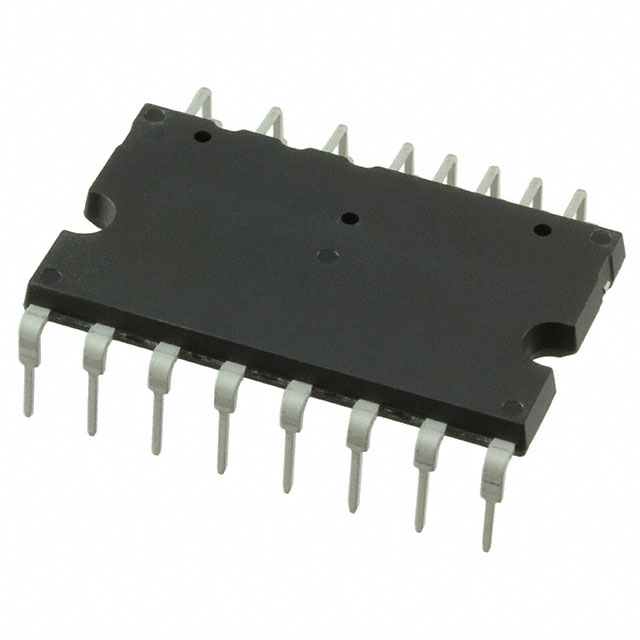

IFCM10P60GDXKMA1

Active

Infineon Technologies

600 V, 10 A CIPOS™ MINI PFC INTEGRATED INTELLIGENT POWER MODULE (IPM) WITH TRENCHSTOP™ IGBT AND BUILT IN NTC IN MDIP-24 DCB PACKAGE.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

IFCM10P60GDXKMA1

Active

Infineon Technologies

600 V, 10 A CIPOS™ MINI PFC INTEGRATED INTELLIGENT POWER MODULE (IPM) WITH TRENCHSTOP™ IGBT AND BUILT IN NTC IN MDIP-24 DCB PACKAGE.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IFCM10P60GDXKMA1

Configuration	3 Phase Inverter
Current	10 A
Mounting Type	Through Hole
Package / Case	24-PowerDIP Module
Package / Case	1.028 in, 26.1 mm
Type	IGBT
Voltage	600 V
Voltage - Isolation	2000 Vrms

IFCM10 Series

Part	Voltage	Voltage - Isolation	Package / Case	Package / Case	Configuration	Current	Mounting Type	Type
Infineon Technologies IFCM10P60GDXKMA1	600 V	2000 Vrms	24-PowerDIP Module	1.028 in 26.1 mm	3 Phase Inverter	10 A	Through Hole	IGBT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	280	$ 9.49
Newark	Each	1	$ 16.73
		10	$ 10.33
		25	$ 10.00
		50	$ 9.87
		100	$ 9.86
		250	$ 9.86
		560	$ 9.86

Description

General part information

IFCM10 Series

CIPOS™Mini600 V, 10 A three-phase TRENCHSTOP™IGBTbasedintelligent power modulewith PFC switching optimized for 40 kHz. It integrates single boost Power Factor Correction (PFC) stage and inverter stage in one DIP 36x21D package with DCB substrate, to provide excellent thermal conduction and electrical isolation for home appliances and industrial drives.
