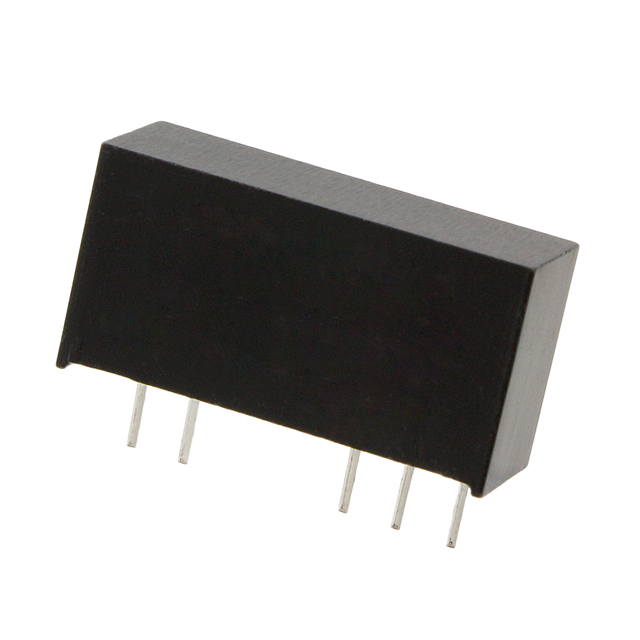

IML0212D03

Active

XP POWER

DC DC CONVERTER +/-3.3V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IML0212D03

Active

XP POWER

DC DC CONVERTER +/-3.3V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IML0212D03

Applications	Medical
Current - Output (Max)	300 mA
Efficiency	78 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 5 Leads
Power (Watts)	2 W
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.5 mm
Size / Dimension [y]	0.39 "
Size / Dimension [y]	9.8 mm
Size / Dimension [z]	0.47 "
Size / Dimension [z]	12 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Isolation	4000 V
Voltage - Output 1	3.3 V
Voltage - Output 2	-3.3 V

IML0212 Series

Part	Number of Outputs	Voltage - Input (Max) [Max]	Features	Type	Efficiency	Mounting Type	Voltage - Output 2	Package / Case	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Output 1	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max)
XP POWER IML0212D05	2	13.2 V	SCP	Isolated Module	80 %	Through Hole	-5 V	7-SIP Module 5 Leads	2 W	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	4000 V	10.8 V	5 V	Medical	85 °C	-40 °C
XP POWER IML0212D15	2	13.2 V	SCP	Isolated Module		Through Hole	-15 V	7-SIP Module 5 Leads	2 W	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	4000 V	10.8 V	15 V	Medical	85 °C	-40 °C	66 mA
XP POWER IML0212D03	2	13.2 V	SCP	Isolated Module	78 %	Through Hole	-3.3 V	7-SIP Module 5 Leads	2 W	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	4000 V	10.8 V	3.3 V	Medical	85 °C	-40 °C	300 mA
XP POWER IML0212S12	1	13.2 V	SCP	Isolated Module	83 %	Through Hole		7-SIP Module 4 Leads	2 W	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	4000 V	10.8 V	12 V	Medical	85 °C	-40 °C		167 mA
XP POWER IML0212S05	1	13.2 V	SCP	Isolated Module	80 %	Through Hole		7-SIP Module 4 Leads	2 W	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	4000 V	10.8 V	5 V	Medical	85 °C	-40 °C		400 mA
XP POWER IML0212D12	2	13.2 V	SCP	Isolated Module	83 %	Through Hole	-12 V	7-SIP Module 5 Leads	2 W	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	4000 V	10.8 V	12 V	Medical	85 °C	-40 °C			83 mA	83 mA
XP POWER IML0212S09	1	13.2 V	SCP	Isolated Module	80 %	Through Hole		7-SIP Module 4 Leads	2 W	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	4000 V	10.8 V	9 V	Medical	85 °C	-40 °C		222 mA
XP POWER IML0212S3V3	1	13.2 V	SCP	Isolated Module	76 %	Through Hole		7-SIP Module 4 Leads	2 W	0.47 "	0.77 in	0.39 "	9.8 mm	12 mm	19.5 mm	4000 V	10.8 V	3.3 V	Medical	85 °C	-40 °C		600 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.35
		5	$ 8.10
		10	$ 7.85
		25	$ 7.52
		100	$ 7.01

Description

General part information

IML0212 Series

Isolated Module DC DC Converter 2 Output 3.3V -3.3V 300mA, 300mA 10.8V - 13.2V Input
