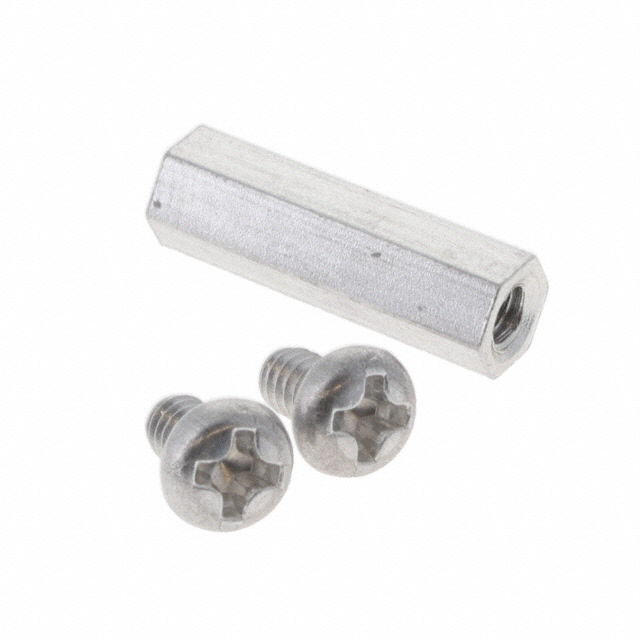

SO-1615-05-01-01

Active

Samtec Inc.

STANDOFFS & SPACERS PRECISION BOARD STACKING STANDOFF

Search across all available documentation for this part.

Active

Samtec Inc.

STANDOFFS & SPACERS PRECISION BOARD STACKING STANDOFF

Technical Specifications

Parameters and characteristics for this part

Standoffs & Spacers Precision Board Stacking Standoff

Part	Between Board Height [z]	Between Board Height [z]	Threaded/Unthreaded	Material	Diameter - Outside [diameter]	Diameter - Outside [custom]	Type	Gender	Screw, Thread Size	Between Board Height	Between Board Height	Diameter - Outside [diameter]	Diameter - Outside [diameter]
Samtec Inc. SO-1215-02-02-01-L	0.478 in	12.15 mm	Threaded	Aluminum	0.188 in 4.78 mm	0.1875 in	Hex Standoff	Male	M3x0.5
Samtec Inc. SO-1524-03-01-02			Threaded	Stainless Steel	0.188 in 4.78 mm	0.1875 in	Hex Standoff	Female Male	#4-40	15.24 mm	0.6 in
Samtec Inc. SO-1615-05-01-01			Threaded	Aluminum			Hex Standoff	Female	#4-40	16.15 mm	0.636 in
Samtec Inc. SO-2515-03-03-02			Threaded	Stainless Steel	0.188 in 4.78 mm	0.1875 in	Hex Standoff	Female Male	M2x0.4	25.15 mm	0.99 in
Samtec Inc. SO-1215-05-01-01	0.478 in	12.15 mm	Threaded	Aluminum			Hex Standoff	Female	#4-40
Samtec Inc. SO-1515-05-02-01-L			Threaded	Aluminum			Hex Standoff	Female	M3x0.5	15.15 mm	0.596 "
Samtec Inc. SO-0815-01-01-01-L			Threaded	Aluminum	6.35 mm		Round Standoff	Female Force Fit	#4-40	8.15 mm	0.321 in	0.25 in	0.25 in
Samtec Inc. SO-2515-03-01-01-L			Threaded	Aluminum	0.188 in 4.78 mm	0.1875 in	Hex Standoff	Female Male	#4-40	25.15 mm	0.99 in
Samtec Inc. SO-2215-03-03-01-L			Threaded	Aluminum	0.188 in 4.78 mm	0.1875 in	Hex Standoff	Female Male	M2x0.4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Standoffs & Spacers Precision Board Stacking Standoff
